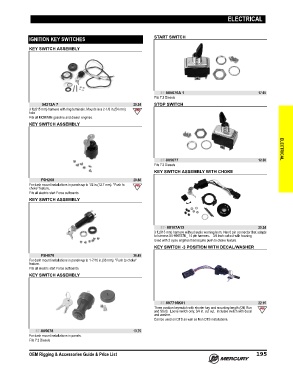

Page 208 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

IGNITION KEY SWITCHES START SWITCH

KEY SWITCH ASSEMBLY

87-805676A 1 17.65
Fits 7.3 Diesels
54212A 7 25.24 STOP SWITCH
3 ft.(915 mm) harness with ring terminals. Mounts in a 2‑1/8 in.(54 mm)
hole
Fits all MCM/MIE gasoline and diesel engines.
KEY SWITCH ASSEMBLY

87-805677 12.30 ELECTRICAL
Fits 7.3 Diesels
KEY SWITCH ASSEMBLY WITH CHOKE
F5H268 29.88
For dash mount installations in panels up to 1/2 in.(12.7 mm). "Push to
choke" feature.
Fits all electric start Force outboards.
KEY SWITCH ASSEMBLY

87- 88107A13 25.24
3 ft.(915 mm) harness without audio warning horn. Has 6 pin connector that adapts
to harness 84‑896537K_ 14 pin harness. 3/4 inch cut out with housing
Used with 2 cycle engines that require push to choke feature.
KEY SWITCH -3 POSITION WITH DECAL/WASHER
F5H078 36.45
For dash mount installations in panels up to 1‑7/16 in.(36 mm). "Push to choke"
feature.
Fits all electric start Force outboards.
KEY SWITCH ASSEMBLY

87-897716K01 22.15
Three position keyswitch with shorter key and mounting length (Off, Run
and Start) Loose switch only. 3/4 in. cut out. Includes switch with decal
and washer.
Can be used on DTS as well as Non DTS installations.

87-805678 13.75
For dash mount installations in panels.
Fits 7.3 Diesels

OEM Rigging & Accessories Guide & Price List 195
