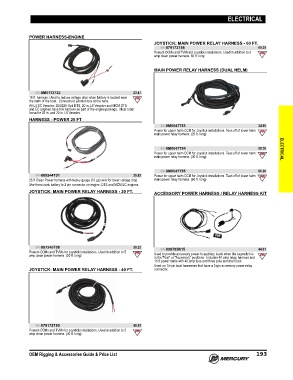

Page 206 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

POWER HARNESS-ENGINE
JOYSTICK: MAIN POWER RELAY HARNESS - 60 FT.
84-879172T86 69.39
Powers CCMs and TVMs for Joystick installations. Used in addition to 5
amp clean power harness. 60 ft. long

MAIN POWER RELAY HARNESS (DUAL HELM)

84-8M0113732 23.47
15 ft. harness. Used to reduce voltage drop when battery is located near
the helm of the boat. Connects to junction box at the helm.
All L4 SC Verados, 200/225 Opti DTS, 20 in. L6 Verados and MCM DTS
and EC engines have this harness as part of the engine package. Must order
loose for 25 in. and 30 in. L6 Verados.
HARNESS - POWER 25 FT
84-8M0047753 34.95
Power for upper helm CCM for Joystick installations. Tees off of lower helm
main power relay harness. (20 ft. long)

84-8M0047754 50.76 ELECTRICAL
Power for upper helm CCM for Joystick installations. Tees off of lower helm
main power relay harness. (40 ft. long)

84-8M0047755 66.20
84-889244T01 25.82 Power for upper helm CCM for Joystick installations. Tees off of lower helm
25 ft Clean Power harness with heavy gauge (10 ga) wire for lower voltage drop. main power relay harness. (60 ft. long)
Use from crank battery to 2 pin connector on engine. DTS and MCM EC engines.
JOYSTICK: MAIN POWER RELAY HARNESS - 20 FT. ACCESSORY POWER HARNESS / RELAY HARNESS KIT

84-897345T08 39.32 84-899785K15 44.61
Powers CCMs and TVMs for Joystick installations. Used in addition to 5
amp clean power harness. (20 ft. long) Used to provide accessory power to auxiliary loads when the keyswitch is
in the "Run" or "Accessory" positions. Includes 40 amp relay, harness and
15 ft power cable with 40 amp fuse and three pole terminal block.
Used on 14‑pin boat harnesses that have a 3‑pin accessory power relay
JOYSTICK: MAIN POWER RELAY HARNESS - 40 FT. connector.

84-879172T85 49.93
Powers CCMs and TVMs for Joystick installations. Used in addition to 5
amp clean power harness. (40 ft. long)

OEM Rigging & Accessories Guide & Price List 193
