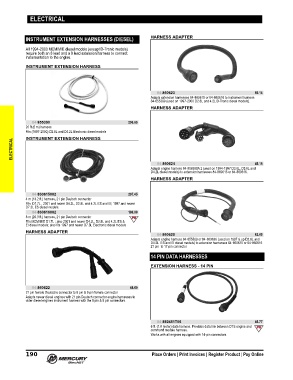

Page 203 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

INSTRUMENT EXTENSION HARNESSES (DIESEL) HARNESS ADAPTER

All 1994‑2000 MCM/MIE diesel models (except D‑Tronic models)
require both an 8 lead and a 9 lead extension harness to connect
instumentation to the engine.

INSTRUMENT EXTENSION HARNESS

84-860623 69.15
Adapts extension harnesses 84‑860615 or 84‑860616 to instrument harness
84‑855389 (used on 1997‑2000 D2.8L and 4.2L D‑Tronic diesel models).
HARNESS ADAPTER

84-855390 296.60
20 ft.(6 m) harness
Fits (1997‑2000) D2.8L and D4.2L Electronic diesel models
INSTRUMENT EXTENSION HARNESS
ELECTRICAL

84-860624 49.15
Adapts engine harness 84‑806389A 2 (used on 1994‑1997 D3.0L, D3.6L and
D4.2L diesel models) to extension harnesses 84‑860615 or 84‑860616.
HARNESS ADAPTER

84-860615002 297.45
4 m (13.2 ft.) harness, 21 pin Deutsch connector
Fits D1.7L , 2001 and newer D4.2L, D2.8L and 4.2L ES and EI; 1997 and newer
D7.3L ES diesel models.
84-860616002 189.09
8 m (26.3 ft.) harness, 21 pin Deutsch connector
Fits MCM/MIE D1.7L ; also 2001 and newer D4.2L, D2.8L and 4.2L ES &
EI diesel models; also fits 1997 and newer D7.3L Electronic diesel models
HARNESS ADAPTER
84-860625 62.00
Adapts engine harness 84‑855509 or 84‑803626 (used on 1997 & up D2.8L and
D4.2L ES and EI diesel models) to extension harnesses 84‑860615 or 84‑860616.
21 pin to 17 pin connector
14 PIN DATA HARNESSES

EXTENSION HARNESS - 14 PIN

84-860622 48.60
21 pin female Deutsche connector to 8 pin & 9 pin female connector
Adapts newer diesel engines with 21 pin Deutsch connector engine harnesses to
older diesel engines instrument harness with the 8 pin & 9 pin connectors.

84-892451T06 45.77
6 ft. (1.8 meter) data harness. Provides data link between DTS engine and
command module harness.
Works with all engines equipped with 14‑pin connectors.
