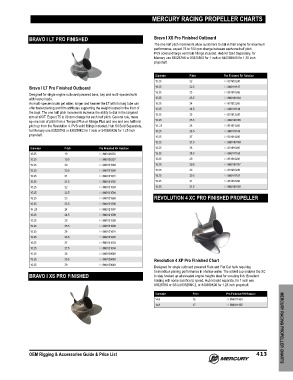

Page 426 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY RACING PROPELLER CHARTS

BRAVO I LT PRO FINISHED Bravo I XS Pro Finished Outboard
The one half pitch increments allow customers to dial in their engine for maximum
performance, expect 75 to 100 rpm change between each one half pitch.
PVS solid and large vent hole fittings included. Hub Kit Sold Separately, for
Mercury use 835257K6 or 835258K2 for 1 inch or 840389K06 for 1.25 inch
propshaft.

Diameter Pitch Pro Finished RH Rotation
15.25 22 48-831910L60
Bravo I LT Pro Finished Outboard 15.25 22.5 48-8M0111147
Designed for single engine outboard powered bass, bay and multi‑species hulls 15.25 23 48-831910L80
with heavy loads. 15.25 23.5 48-8M0100104
As multi‑species boats get wider, longer and heavier the LT with its long tube can 15.25 24 48-831912L60
offer faster planing and trim attributes supporting the weight located in the front of 15.25 24.5 48-8M0111148
the boat. The one half pitch increments increase the ability to dial in the targeted 15.25 25 48-831912L80
rpm at WOT. Expect 75 to 80 rpm change for each half pitch. General rule, move
up one inch of pitch from a Tempest Plus or Mirage Plus and one and one half inch 15.25 25.5 48-8M0100105
pitch up from the Revolution 4. PVS solid fittings included. Hub Kit Sold Separately, 15 .25 26 48-831914L60
for Mercury use 835257K6 or 835258K2 for 1 inch or 840389K06 for 1.25 inch 15.25 26.5 48-8M0111149
propshaft. 15.25 27 48-831914L80
15.25 27.5 48-8M0100106
Diameter Pitch Pro Finished RH Rotation 15.25 28 48-831916L60
15.25 19 48-8M0126236 15.25 28.5 48-8M0111150
15.25 19.5 48-8M0126237 15.25 29 48-831916L80
15.25 20 48-8M0121589 15.25 29.5 48-8M0100107
15.25 20.5 48-8M0121590 15.25 30 48-831918L60
15.25 21 48-8M0121591 15.25 30.5 48-8M0111151
15.25 21.5 48-8M0121592 15.25 31 48-831918L80
15.25 22 48-8M0121593 15.25 31.5 48-8M0100109
15.25 22.5 48-8M0121594
REVOLUTION 4 XC PRO FINISHED PROPELLER
15.25 23 48-8M0121595
15.25 23.5 48-8M0121596
15 .25 24 48-8M0121597
15.25 24.5 48-8M0121598
15.25 25 48-8M0121599
15.25 25.5 48-8M0121600
15.25 26 48-8M0121601
15.25 26.5 48-8M0121602
15.25 27 48-8M0121603
15.25 27.5 48-8M0121604
15.25 28 48-8M0129046
15.25 28.5 48-8M0129048 Revolution 4 XP Pro Finished Chart
15.25 29 48-8M0129049
Designed for single outboard powered Flats and Flat Cat hulls requiring
tremendous planing performance in shallow water. The added cup enables the XC
BRAVO I XS PRO FINISHED to stay hooked up at elevated engine heights ideal for scouting fish. Excellent
holding with some sacrifice to speed. Hub kit sold separate, for 1 inch use
835257K6 or SS kit 835258K 2, or 840389K06 for 1.25 inch propshaft
Diameter Pitch Pro Finished RH Rotaion
14.8 15 48-8M0111924
14.8 17 48-8M0111925 MERCURY RACING PROPELLER CHARTS

OEM Rigging & Accessories Guide & Price List 413
