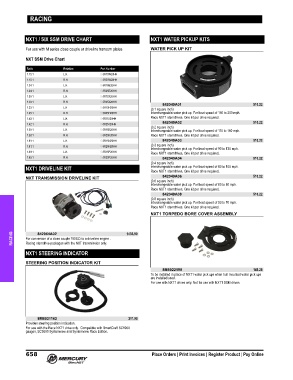

RACING

NXT1 / SIX SSM DRIVE CHART NXT1 WATER PICKUP KITS

For use with M series close couple or driveline transom plates. WATER PICK UP KIT

NXT SSM Drive Chart
Ratio Rotation Part Number
1.15:1 L.H. 5-5R15W20HH
1.15:1 R.H. 5-5R25W20HH
1.24:1 L.H. 5-5R15E20HH
1.24:1 R.H. 5-5R25E20HH
1.30:1 L.H. 5-5R15X20HH
1.30:1 R.H. 5-5R25X20HH
842049A01 510.22
1.35:1 L.H 5-5R15H20HH
(0.1 square inch)
1.35:1 R.H. 5-5R25H20HH Interchangeable water pick up. For boat speed of 150 to 200 mph.
Race NXT1 sterndrives. One kit per drive required.
1.42:1 L.H. 5-5R15J20HH
842049A02 510.22
1.42:1 R.H. 5-5R25J20HH
(0.2 square inch)
1.50:1 L.H. 5-5R15K20HH Interchangeable water pick up. For boat speed of 110 to 160 mph.
1.50:1 R.H. 5-5R25K20HH Race NXT1 sterndrives. One kit per drive required.
1.61:1 L.H. 5-5R15N20HH 842049A03 510.22
1.61:1 R.H. 5-5R25N20HH (0.3 square inch)
Interchangeable water pick up. For boat speed of 90 to 130 mph.
1.69:1 L.H. 5-5R15P20HH Race NXT1 sterndrives. One kit per drive required.
1.69:1 R.H. 5-5R25P20HH 842049A04 510.22
(0.4 square inch)
NXT1 DRIVELINE KIT Interchangeable water pick up. For boat speed of 80 to 100 mph.
Race NXT1 sterndrives. One kit per drive required.
NXT TRANSMISSION DRIVELINE KIT 842049A06 510.22
(0.6 square inch)
Interchangeable water pick up. For boat speed of 60 to 80 mph.
Race NXT1 sterndrives. One kit per drive required.
842049A08 510.22
(0.8 square inch)
Interchangeable water pick up. For boat speed of 50 to 70 mph.
Race NXT1 sterndrives. One kit per drive required.
NXT1 TORPEDO BORE COVER ASSEMBLY

842064A02
RACING For conversion of a close couple 700SCi to a driveline engine . 1433.90
Racing sterndrive packages with the NXT transmission only.
NXT1 STEERING INDICATOR

STEERING POSITION INDICATOR KIT
8M8022198 149.28
To be installed in place of NXT1 water pick ups when hull mounted water pick ups
are installed/used.
For use with NXT1 drives only. Not for use with NXT1 SSM drives.

8M8021162 211.95
Provides steering position indication.
For use with the Race NXT1 drive only. Compatible with SmartCraft SC1000
gauges, SC5000 Systemview and Systemview Race Edition.
