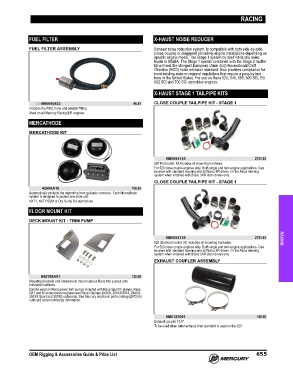

Page 668 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

RACING

FUEL FILTER X-HAUST NOISE REDUCER

FUEL FILTER ASSEMBLY Exhaust noise reduction system. Is compatible with both side‑by‑side
(close couple) or staggered (driveline) engine installations depending on
specific engine model. The Stage 1 system by itself limits idle noise
levels to 88dBA. The Stage 1 system combined with the Stage 2 muffler
kit will beat the stringent European Union (EU) Recreational Craft
Directive (RCD) noise emission standard. Also provides compliance for
most existing state or regional regulations that require a pass by test
here in the United States. For use on Race 520, 540, 565, 600 SCi, EU
662 SCi and 700 SCi sterndrive engines.

X-HAUST STAGE 1 TAILPIPE KITS
35-8M0050833 46.51 CLOSE COUPLE TAILPIPE KIT - STAGE 1
Includes fuel filter, hose and adapter fitting.
Used on all Mercury Racing EFI engines.
MERCATHODE

MERCATHODE KIT

8M0094135 2731.63
520 Port outlet. Kit includes all mounting hardware.
For 520 close couple engines only. Both single and twin engine applications. Can
be used with standard steering and all Bravo XR drives. Or the Axius steering
system when installed with Bravo 3XR stern drives only.
CLOSE COUPLE TAILPIPE KIT - STAGE 1
42600A18 106.63
Automatically protects the sterndrive from galvanic corrosion. Each Mercathode
system is designed to protect one drive unit.
NXT1, NXT1/SSM or Dry Sump Six sterndrives.
FLOOR MOUNT KIT

DECK MOUNT KIT - TRIM PUMP

8M0094136 2731.63 RACING
520 Starboard outlet. Kit includles all mounting hardware.
For 520 close couple engines only. Both single and twin engine applications. Can
be used with standard steering and all Bravo XR drives. Or the Axius steering
system when installed with Bravo 3XR stern drives only.
EXHAUST COUPLER ASSEMBLY

842109A01 120.08
Mounting brackets and hardware to mount various Race trim pumps onto
horizontal surfaces.
Can be used on Race power trim pumps included with Race Sport K‑planes, Race
NXT and M series transom plates and Race Optimax 200XS, 200XS ROS, 250XS,
250XS Sport and 300XS outboards. See Mercury electronic parts catalog (EPC) for
outboard serial number(s) information.

8M0123001 145.00
Exhaust coupler 10.5"
To be used when taller exhaust than standard is used on the 520

OEM Rigging & Accessories Guide & Price List 655
