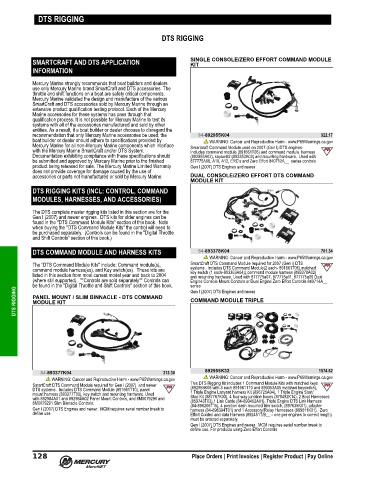

Page 141 - Rigging and Accessories Guide (2022) - 8M0187689

DTS RIGGING

DTS RIGGING

SMARTCRAFT AND DTS APPLICATION SINGLE CONSOLE/ZERO EFFORT COMMAND MODULE
KIT
INFORMATION
Mercury Marine strongly recommends that boat builders and dealers
use only Mercury Marine brand SmartCraft and DTS accessories. The
throttle and shift functions on a boat are safety critical components.
Mercury Marine validated the design and manufacture of the various
SmartCraft and DTS accessories sold by Mercury Marine through an
extensive product qualification testing protocol. Each of the Mercury
Marine accessories for these systems has pass through that
qualification process. It is not possible for Mercury Marine to test its
systems with all of the accessories manufactured and sold by other
entities. As a result, if a boat builder or dealer chooses to disregard the
recommendation that only Mercury Marine accessories be used, the 84-892955K04 322.17
boat builder or dealer should adhere to specifications provided by WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Mercury Marine for all non‑Mercury Marine components which interface Smartcraft Command Module used on 2007 (Gen I) DTS engines‑
with the Mercury Marine SmartCraft and/or DTS System. Includes command module (891661T06) and command module harness
Documentation exhibiting compliance with these specifications should (892955A02), keyswitch(893353A03) and mounting hardware. Used with
be submitted and approved by Mercury Marine prior to the finished 877775A08, A10, A12, ERC's and Zero Effort 840712A__ series controls
product being released for sale. The Mercury Marine Limited Warranty Gen I (2007) DTS Engines and newer
does not provide coverage for damage caused by the use of
accessories or parts not manufactured or sold by Mercury Marine. DUAL CONSOLE/ZERO EFFORT DTS COMMAND
MODULE KIT
DTS RIGGING KITS (INCL: CONTROL, COMMAND
MODULES, HARNESSES, AND ACCESSORIES)

The DTS complete master rigging kits listed in this section are for the
Gen I (2007) and newer engines. DTS kits for older engines can be
found in the "DTS Command Module Kits" section of this book. Note
when buying the "DTS Command Module Kits" the control will need to
be purchased separately. (Controls can be found in the "Digital Throttle
and Shift Controls" section of this book.)

DTS COMMAND MODULE AND HARNESS KITS 84-893378K04 701.34
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The "DTS Command Module Kits" include: Command module(s), SmartCraft DTS Command Module required for 2007 (Gen I) DTS
command module harness(es), and Key switch(es). These kits are systems. Includes DTS Command Module(2 each‑ 891661T06),matched
listed in this section from most current model year and back to 2004 key switch (1 each‑893353A04)),command module harness (893378A02)
and mounting hardware. Used with 877775a07, 877775a11, 877775a09 Dual
(where still supported). **Controls are sold separately** Controls can Engine Console Mount Controls or Dual Engine Zero Effort Controls 840714A__
be found in the "Digital Throttle and Shift Controls" section of this book. series
DTS RIGGING PANEL MOUNT / SLIM BINNACLE - DTS COMMAND COMMAND MODULE TRIPLE
Gen I (2007) DTS Engines and newer
MODULE KIT

84-893377K04 313.30 892955K32 1574.62
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SmartCraft DTS Command Module required for Gen I (2007) and newer This DTS Rigging Kit includes 1 Command Module Kits with matched keys
DTS systems. Includes DTS Command Module (891661T10), panel (892955K06 with 3 each 891661T10 and 893353A05 matched keyswitch),
mount harness (893377T03), key switch and mounting hardware. Used 1 Triple Engine Lanyard harness Kit (895725A04), 1 Triple Engine Start/
with 892984A01 and 892984A02 Panel Mount Controls, and 8M0079290 and Stop Kit (887767K03), 4 four way junction boxes (878492K14), 2 Boat Harnesses
(859743T03),1 Link Cable (84‑893452A01), Triple Engine DTS Link Harness
8M0079291 Slim Binnacle Controls. (84‑896206T15), 4 position dash mounted trim switch, (897635K01), adapter
Gen I (2007) DTS Engines and newer. MCM requires serial number break to harness (84‑896394T01) and 1 Accessory/Relay Harnesses (889611K01). Zero
define use. Effort Control and data Harness (892451T/B__ ‑ one per engines to correct length)
must be ordered separately.
Gen I (2007) DTS Engines and newer. MCM requires serial number break to
define use. For products using Zero Effort Controls
