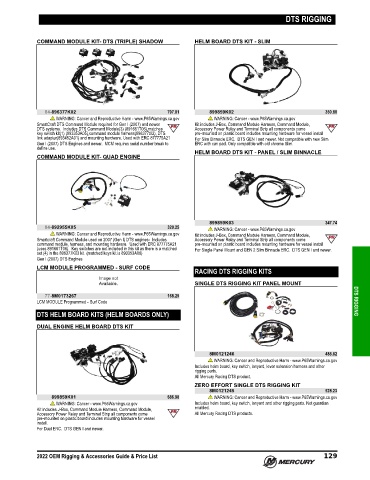

Page 142 - Rigging and Accessories Guide (2022) - 8M0187689

DTS RIGGING

COMMAND MODULE KIT- DTS (TRIPLE) SHADOW HELM BOARD DTS KIT - SLIM

84-896377K02 797.81 899859K02 350.80
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer - www.P65Warnings.ca.gov
SmartCraft DTS Command Module required for Gen I (2007) and newer Kit includes J‑Box, Command Module Harness, Command Module,
DTS systems. Includes DTS Command Module(3) (891661T06),matches Accessory Power Relay and Terminal Strip all components come
key switch kIt(1) (893353A05),command module harness(896377t02), DTS pre‑mounted on plastic board includes mounting hardware for vessel install
link adapter(893452A01) and mounting hardware. Used with ERC 877775A21 For Slim Binnacle ERC. DTS GEN I and newer. Not compatible with new Slim
Gen I (2007) DTS Engines and newer. MCM requires serial number break to ERC with can pad. Only compatible with old chrome Slim.
define use.
HELM BOARD DTS KIT - PANEL / SLIM BINNACLE
COMMAND MODULE KIT- QUAD ENGINE

899859K03 347.74
84-892955K05 320.25 WARNING: Cancer - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Kit includes J‑Box, Command Module Harness, Command Module,
Smartcraft Command Module used on 2007 (Gen I) DTS engines‑ Includes Accessory Power Relay and Terminal Strip all components come
command module, harness, and mounting hardware. Used with ERC 877775A21 pre‑mounted on plastic board includes mounting hardware for vessel install
(uses 891661T06). Key switches are not included in this kit as there is a matched For Single Panel Mount and GEN 2 Slim Binnacle ERC. DTS GEN I and newer.
set (4) in the 896377K03 kit (matched keys kit is 893353A06)
Gen I (2007) DTS Engines
LCM MODULE PROGRAMMED - SURF CODE
RACING DTS RIGGING KITS
SINGLE DTS RIGGING KIT PANEL MOUNT
77-8M0173267 168.29
LCM MODULE Programmed ‑ Surf Code DTS RIGGING
DTS HELM BOARD KITS (HELM BOARDS ONLY)

DUAL ENGINE HELM BOARD DTS KIT

8M0121246 488.82
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Includes helm board, key switch, lanyard, lever extension harness and other
rigging parts.
All Mercury Racing DTS product.
ZERO EFFORT SINGLE DTS RIGGING KIT
8M0121245 528.23
899859K01 686.98 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer - www.P65Warnings.ca.gov Includes helm board, key switch, lanyard and other rigging parts. Not guardian
Kit includes J‑Box, Command Module Harness, Command Module, enabled.
Accessory Power Relay and Terminal Strip all components come All Mercury Racing DTS products.
pre‑mounted on plastic board includes mounting hardware for vessel
install.
For Dual ERC. DTS GEN I and newer.

2022 OEM Rigging & Accessories Guide & Price List 129
