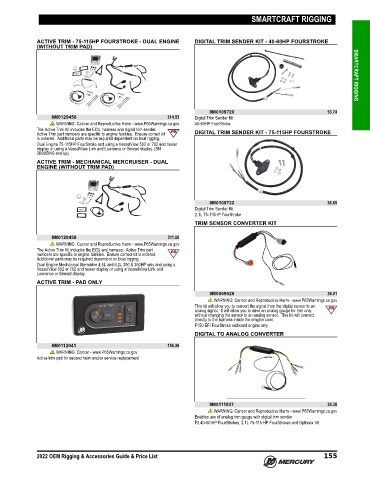

Page 168 - Rigging and Accessories Guide (2022) - 8M0187689

SMARTCRAFT RIGGING

ACTIVE TRIM - 75-115HP FOURSTROKE - DUAL ENGINE DIGITAL TRIM SENDER KIT - 40-60HP FOURSTROKE
(WITHOUT TRIM PAD) SMARTCRAFT RIGGING

8M0109720 53.74
8M0129456 314.53 Digital Trim Sender Kit
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 40‑60HP FourStroke
The Active Trim Kit includes the ECU, harness and digital trim sender. DIGITAL TRIM SENDER KIT - 75-115HP FOURSTROKE
Active Trim part numbers are specific to engine families. Ensure correct kit
is ordered. Additional parts may be required dependent on boat rigging.
Dual Engine 75‑115HP FourStroke and using a VesselView 502 or 702 and newer
display or using a VesselView Link and Lowrance or Simrad display. (SN
2B095049 and up)
ACTIVE TRIM - MECHANICAL MERCRUISER - DUAL
ENGINE (WITHOUT TRIM PAD)

8M0109722 36.65
Digital Trim Sender Kit
2.1L 75‑115HP FourStroke
TRIM SENSOR CONVERTER KIT

8M0129458 311.50
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Active Trim Kit includes the ECU and harness. Active Trim part
numbers are specific to engine families. Ensure correct kit is ordered.
Additional parts may be required dependent on boat rigging.
Dual Engine Mechanical Sterndrive 4.5L and 6.2L 300 & 350HP only and using a
VesselView 502 or 702 and newer display or using a VesselView Link and
Lowrance or Simrad display.
ACTIVE TRIM - PAD ONLY
8M0059529 36.01
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This kit will allow you to convert the signal from the digital sensor to an
analog signal. It will allow you to drive an analog gauge for trim only
without changing the sensor to an analog sensor. This kit will connect
directly to the harness inside the emgine cowl.
F150 EFI FourStroke outboard engine only
DIGITAL TO ANALOG CONVERTER

8M0112041 156.36
WARNING: Cancer - www.P65Warnings.ca.gov
Active trim pad for second helm and/or service replacement

8M0111837 35.38
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Enables use of analog trim gauge with digital trim sender
F2 40‑60 HP FourStrokes, 2.1L 75‑115 HP FourStrokes and Optimax V6

2022 OEM Rigging & Accessories Guide & Price List 155
