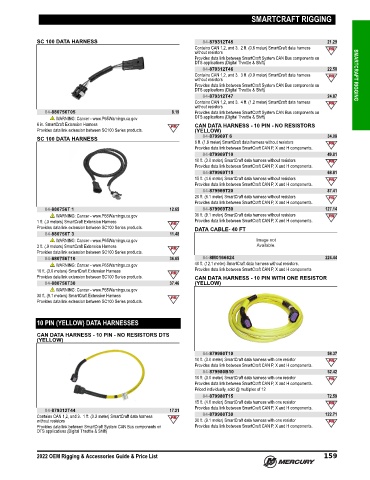

Page 172 - Rigging and Accessories Guide (2022) - 8M0187689

SMARTCRAFT RIGGING

SC 100 DATA HARNESS 84-879312T45 21.29
Contains CAN 1,2, and 3. 2 ft. (0.6 meter) SmartCraft data harness
without resistors
Provides data link between SmartCraft System CAN Bus components on
DTS applications (Digital Throttle & Shift)
84-879312T46 22.50
Contains CAN 1,2, and 3. 3 ft. (0.9 meter) SmartCraft data harness SMARTCRAFT RIGGING
without resistors
Provides data link between SmartCraft System CAN Bus components on
DTS applications (Digital Throttle & Shift)
84-879312T47 24.87
Contains CAN 1,2, and 3. 4 ft. (1.2 meter) SmartCraft data harness
without resistors
84-880756T05 8.19 Provides data link between SmartCraft System CAN Bus components on
WARNING: Cancer - www.P65Warnings.ca.gov DTS applications (Digital Throttle & Shift)
6 in. SmartCraft Extension Harness CAN DATA HARNESS - 10 PIN - NO RESISTORS
Provides data link extension between SC100 Series products. (YELLOW)
84-879969T 6 34.08
SC 100 DATA HARNESS
6 ft. (1.8 meter) SmartCraft data harness without resistors
Provides data link between SmartCraft CAN P, X and H components.
84-879969T10 49.81
10 ft. (3.0 meter) SmartCraft data harness without resistors
Provides data link between SmartCraft CAN P, X and H components.
84-879969T15 68.81
15 ft. (4.6 meter) SmartCraft data harness without resistors
Provides data link between SmartCraft CAN P, X and H components.
84-879969T20 87.41
20 ft. (6.1 meter) SmartCraft data harness without resistors
Provides data link between SmartCraft CAN P, X and H components.
84-880756T 1 12.65 84-879969T30 127.14
WARNING: Cancer - www.P65Warnings.ca.gov 30 ft. (9.1 meter) SmartCraft data harness without resistors
1 ft. (.3 meters) SmartCraft Extension Harness Provides data link between SmartCraft CAN P, X and H components.
Provides data link extension between SC100 Series products. DATA CABLE- 40 FT
84-880756T 3 11.48
WARNING: Cancer - www.P65Warnings.ca.gov
3 ft. (.9 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.
84-880756T10 36.65 84-8M0166624 224.44
WARNING: Cancer - www.P65Warnings.ca.gov 40 ft. (12.1 meter) SmartCraft data harness without resistors.
10 ft. (3.0 meters) SmartCraft Extension Harness Provides data link between SmartCraft CAN P, X and H components
Provides data link extension between SC100 Series products. CAN DATA HARNESS - 10 PIN WITH ONE RESISTOR
84-880756T30 37.46 (YELLOW)
WARNING: Cancer - www.P65Warnings.ca.gov
30 ft. (9.1 meters) SmartCraft Extension Harness
Provides data link extension between SC100 Series products.

10 PIN (YELLOW) DATA HARNESSES
CAN DATA HARNESS - 10 PIN - NO RESISTORS DTS
(YELLOW)
84-879980T10 58.37
10 ft. (3.0 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft CAN P, X and H components.
84-879980B10 52.42
10 ft. (3.0 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft CAN P, X and H components.
Priced individually, sold @ multiples of 12
84-879980T15 72.59
15 ft. (4.6 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft CAN P, X and H components.
84-879312T44 17.21
Contains CAN 1,2, and 3. 1 ft. (0.3 meter) SmartCraft data harness 84-879980T30 122.71
without resistors 30 ft. (9.1 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus components on Provides data link between SmartCraft CAN P, X and H components.
DTS applications (Digital Throttle & Shift)

2022 OEM Rigging & Accessories Guide & Price List 159
