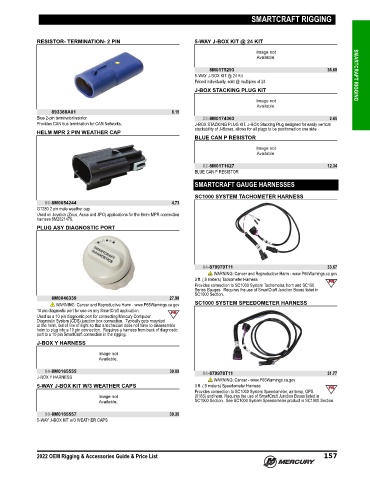

Page 170 - Rigging and Accessories Guide (2022) - 8M0187689

SMARTCRAFT RIGGING

RESISTOR- TERMINATION- 2 PIN 5-WAY J-BOX KIT @ 24 KIT

8M0175293 36.60
5‑WAY J‑BOX KIT @ 24 Kit SMARTCRAFT RIGGING
Priced individually, sold @ multiples of 24
J-BOX STACKING PLUG KIT

893388A01 8.15
Blue 2‑pin terminator/resistor 23-8M0174363 2.65
Provides CAN bus termination for CAN Networks. J‑BOX STACKING PLUG KIT. J‑BOX Stacking Plug designed for easily vertical
stackability of J‑Boxes, allows for all plugs to be positioned on one side
HELM MPR 2 PIN WEATHER CAP
BLUE CAN P RESISTOR

82-8M0171627 12.34
BLUE CAN P RESISTOR
SMARTCRAFT GAUGE HARNESSES

SC1000 SYSTEM TACHOMETER HARNESS
86-8M0054244 4.73
GT280 2 pin male weather cap.
Used on Joystick (Zeus, Axius and JPO) applications for the Helm MPR connection
harness 8M2021476.
PLUG ASY DIAGNOSTIC PORT

84-879979T11 33.67
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
3 ft. (.9 meters) Tachometer Harness
Provides connection to SC1000 System Tachometer, horn and SC100
Series Gauges. Requires the use of SmartCraft Junction Boxes listed in
SC1000 Section.
8M0046339 27.98
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov SC1000 SYSTEM SPEEDOMETER HARNESS
10 pin diagnostic port for use on any SmartCraft application.
Used as a 10 pin diagnostic port for connecting Mercury Computer
Diagnostic System (CDS) junction box connection. Typically gets mounted
at the helm, out of line of sight so that a technician does not have to disassemble
helm to plug into a 10 pin connection. Requires a harness from back of diagnostic
port to a 10 pin SmartCraft connection in the rigging.
J-BOX Y HARNESS

84-8M0165555 30.09 84-879978T11 31.77
J‑BOX Y HARNESS
WARNING: Cancer - www.P65Warnings.ca.gov
5-WAY J-BOX KIT W/3 WEATHER CAPS 3 ft. (.9 meters) Speedometer Harness
Provides connection to SC1000 System Speedometer, air temp, GPS
(0183) and horn. Requires the use of SmartCraft Junction Boxes listed in
SC1000 Section. See SC1000 System Speedometer product in SC1000 Section.

98-8M0165557 39.35
5‑WAY J‑BOX KIT w/3 WEATHER CAPS

2022 OEM Rigging & Accessories Guide & Price List 157
