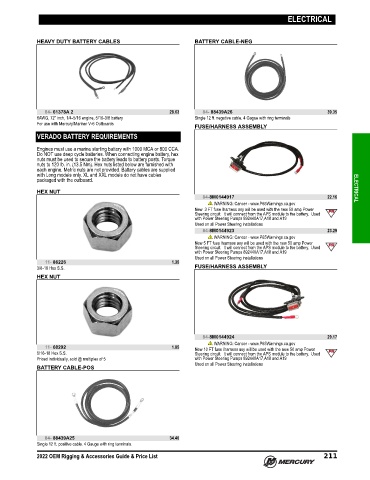

Page 224 - Rigging and Accessories Guide (2022) - 8M0187689

ELECTRICAL

HEAVY DUTY BATTERY CABLES BATTERY CABLE-NEG

84- 61378A 2 28.63 84- 88439A26 39.35
6AWG, 72" inch, 1/4‑5/16 engine, 5/16‑3/8 battery Single 12 ft. negative cable. 4 Gague with ring terminals
For use with Mercury/Mariner V‑6 Outboards
FUSE/HARNESS ASSEMBLY
VERADO BATTERY REQUIREMENTS

Engines must use a marine starting battery with 1000 MCA or 800 CCA.
Do NOT use deep cycle batteries. When connecting engine battery, hex
nuts must be used to secure the battery leads to battery posts. Torque
nuts to 120 lb. in. (13.5 Nm). Hex nuts listed below are furnished with
each engine. Metric nuts are not provided. Battery cables are supplied
with Long models only. XL and XXL models do not have cables
packaged with the outboard.

HEX NUT ELECTRICAL
84-8M0144917 22.16
WARNING: Cancer - www.P65Warnings.ca.gov
New 3 FT fuse /harness asy will be used with the new 50 amp Power
Steering circuit. It will connect from the APS module to the battery. Used
with Power Steering Pumps 892440A17,A18 and A19
Used on all Power Steering installations
84-8M0144923 23.29
WARNING: Cancer - www.P65Warnings.ca.gov
New 5 FT fuse /harness asy will be used with the new 50 amp Power
Steering circuit. It will connect from the APS module to the battery. Used
with Power Steering Pumps 892440A17,A18 and A19
Used on all Power Steering installations
11- 86226 1.35
3/8‑16 Hex S.S. FUSE/HARNESS ASSEMBLY
HEX NUT

84-8M0144924 29.17
WARNING: Cancer - www.P65Warnings.ca.gov
11- 68292 1.85 New 10 FT fuse /harness asy will be used with the new 50 amp Power
5/16‑18 Hex S.S. Steering circuit. It will connect from the APS module to the battery. Used
Priced individually, sold @ multiples of 5 with Power Steering Pumps 892440A17,A18 and A19
Used on all Power Steering installations
BATTERY CABLE-POS

84- 88439A25 34.40
Single 12 ft. positive cable. 4 Gauge with ring terminals.
2022 OEM Rigging & Accessories Guide & Price List 211
