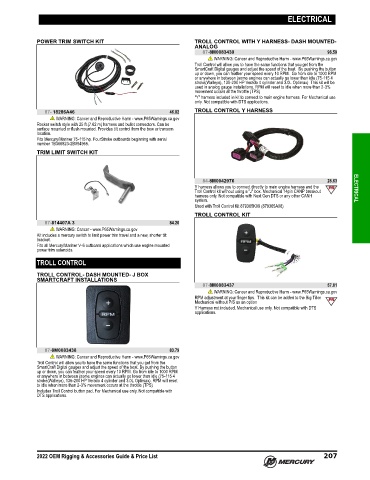

Page 220 - Rigging and Accessories Guide (2022) - 8M0187689

ELECTRICAL

POWER TRIM SWITCH KIT TROLL CONTROL WITH Y HARNESS- DASH MOUNTED-
ANALOG
87-8M0083439 96.59
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Troll Control will allow you to have the same functions that you get from the
SmartCraft Digital gauges and adjust the speed of the boat. By pushing the button
up or down, you can feather your speed every 10 RPM. Go from idle to 1000 RPM
or anywhere in between (some engines can actually go lower than idle (75‑115 4
stroke(Walleye), 135‑200 HP Verado 4 cylinder and 3.0L Optimax) This kit will be
used in analog gauge installations. RPM will reset to idle when more than 2‑3%
movement occurs at the throttle (TPS)
"Y" harness included in kit to connect to main engine harness. For Mechanical use
only. Not compatible with DTS applications.
87- 18286A46 46.82 TROLL CONTROL Y HARNESS
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rocker switch style with 25 ft.(7.62 m) harness and bullet connectors. Can be
surface mounted or flush mounted. Provides tilt control from the bow or transom
location.
Fits Mercury/Mariner 75‑115 hp. FourStroke outboards beginning with serial
number 1B366823‑2B094955.
TRIM LIMIT SWITCH KIT

84-8M0042976 28.63
Y harness allows you to connect directly to main engine harness and the ELECTRICAL
Troll Control kit without using a "J" box. Mechanical 14pin CANP breakout
harness only. Not compatible with Next Gen DTS or any other CANH
system.
Used with Troll Control Kit 879365K08 (879365A08)
TROLL CONTROL KIT
87-814407A 3 84.20
WARNING: Cancer - www.P65Warnings.ca.gov
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt
bracket.
Fits all Mercury/Mariner V‑6 outboard applications which use engine mounted
power trim solenoids.
TROLL CONTROL

TROLL CONTROL- DASH MOUNTED- J BOX
SMARTCRAFT INSTALLATIONS
87-8M0083437 57.81
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RPM adjustment at your finger tips. This kit can be added to the Big Tiller
Mechanical without P/S as an option
Y Harness not included. Mechanical use only. Not compatible with DTS
applications.

87-8M0083438 83.79
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Troll Control will allow you to have the same functions that you get from the
SmartCraft Digital gauges and adjust the speed of the boat. By pushing the button
up or down, you can feather your speed every 10 RPM. Go from idle to 1000 RPM
or anywhere in between (some engines can actually go lower than idle (75‑115 4
stroke(Walleye), 135‑200 HP Verado 4 cylinder and 3.0L Optimax). RPM will reset
to idle when more than 2‑3% movement occurs at the throttle (TPS)
Includes Troll Control button pad. For Mechanical use only. Not compatible with
DTS applications.

2022 OEM Rigging & Accessories Guide & Price List 207
