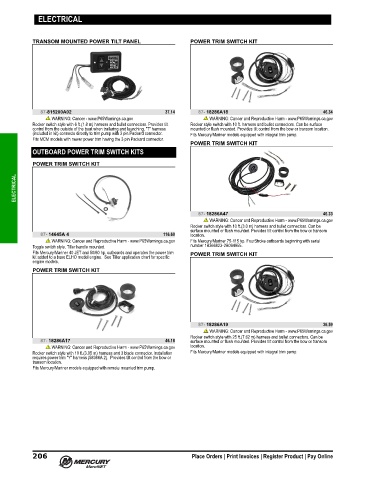

Page 219 - Rigging and Accessories Guide (2022) - 8M0187689

ELECTRICAL

TRANSOM MOUNTED POWER TILT PANEL POWER TRIM SWITCH KIT

87-815200A02 37.14 87- 18286A18 46.34
WARNING: Cancer - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rocker switch style with 6 ft.(1.8 m) harness and bullet connectors. Provides tilt Rocker style switch with 10 ft. harness and bullet connectors. Can be surface
control from the outside of the boat when trailering and launching. "T" harness mounted or flush mounted. Provides tilt control from the bow or transom location.
(included in kit) connects directly to trim pump with 3 pin Packard connector. Fits Mercury/Mariner models equipped with integral trim pump.
Fits MCM models with newer power trim having the 3 pin Packard connector.
POWER TRIM SWITCH KIT
OUTBOARD POWER TRIM SWITCH KITS

POWER TRIM SWITCH KIT

ELECTRICAL

87- 18286A47 46.33
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rocker switch style with 10 ft.(3.0 m) harness and bullet connectors. Can be
surface mounted or flush mounted. Provides tilt control from the bow or transom
87- 14645A 4 116.60 location.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Fits Mercury/Mariner 75‑115 hp. FourStroke outboards beginning with serial
Toggle switch style. Tiller handle mounted. number 1B366823‑2B094955.
Fits Mercury/Mariner 40 JET and 50/60 hp. outboards and operates the power trim POWER TRIM SWITCH KIT
kit added to a base ELHO model engine. See Tiller application chart for specific
engine models.
POWER TRIM SWITCH KIT

87- 18286A19 36.59
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rocker switch style with 25 ft.(7.62 m) harness and bullet connectors. Can be
87- 18286A17 46.18 surface mounted or flush mounted. Provides tilt control from the bow or transom
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov location.
Rocker switch style with 10 ft.(3.05 m) harness and 3 blade connector. Installation Fits Mercury/Mariner models equipped with integral trim pump.
requires power trim "Y" harness (58366A 2). Provides tilt control from the bow or
transom location.
Fits Mercury/Mariner models equipped with remote mounted trim pump.
