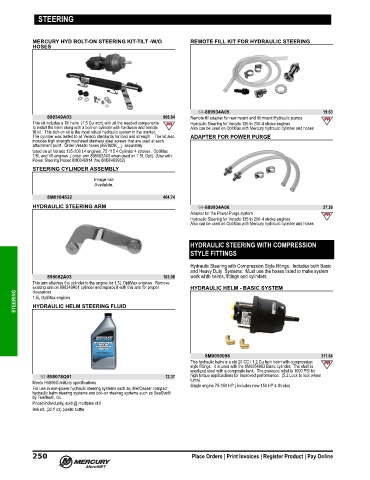

Page 263 - Rigging and Accessories Guide (2022) - 8M0187689

STEERING

MERCURY HYD BOLT-ON STEERING KIT-TILT -W/O REMOTE FILL KIT FOR HYDRAULIC STEERING
HOSES

64-889934A05 19.63
898349A03 808.64 Remote fill adapter for rear mount and tilt mount Hydraulic pumps
This kit includes a Tilt helm (1.5 Cu Inch) with all the needed components Hydraulic Steering for Verado 135 to 200‑4 stroke engines
to install the helm along with a bolt‑on cylinder with hardware and remote Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
fill kit. This bolt‑on kit is the most robust hydraulic system in the market.
The cylinder was tested to all Verado standards for load and strength. The kit also ADAPTER FOR POWER PURGE
includes high strength machined stainless steel screws that are used at each
attachment point. Order Verado hoses (897982K__) separately
Used on all Verado 135‑200 L4 engines, 75‑115 4 Cylinder 4 strokes , OptiMax
1/5L and V6 engines ( order arm 898082A03 when used on 1.5L Opti) (Use with
Power Steering Hoses 8M0046914 thru 8M00469932)
STEERING CYLINDER ASSEMBLY

8M0184532 464.74
HYDRAULIC STEERING ARM 64-889934A06 27.26
Adapter for the Power Purge system
Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses

HYDRAULIC STEERING WITH COMPRESSION
STYLE FITTINGS

Hydraulic Steering with Compression Style fittings. Includes both Basic
and Heavy Duty Systems. Must use the hoses listed to make system
898082A03 103.98 work whth helms, fittings and cylinders.
This arm attaches the cylinder to the engine for 1.5L OptiMax engines. Remove
existing arm on 898349A01 cylinder and replace it with this arm for proper HYDRAULIC HELM - BASIC SYSTEM
clearances
STEERING 1.5L OptiMax engines
HYDRAULIC HELM STEERING FLUID

8M0050098 311.64
This hydraulic helm is a std 20 CC / 1.2 Cu Inch helm with compression
style fittings. It is used with the 8M0054993 Basic cylinder. The shaft is
anodized steel with a composite tank. The pressure relief is 1000 PSI for
92-858078Q01 12.37 high torque applicactions for improved performance. (5.2 Lock to lock wheel
Meets H5606G military specifications turns).
For use in non‑power hydraulic steering systems such as, MerCruiser compact Single engine 75‑150 HP ( includes new 150 HP 4 Stroke)
hydraulic helm steering systems and bolt‑on steering systems such as SeaStar®
by Teleflex®, Inc.
Priced individually, sold @ multiples of 6
946 mL (32 fl oz) plastic bottle
