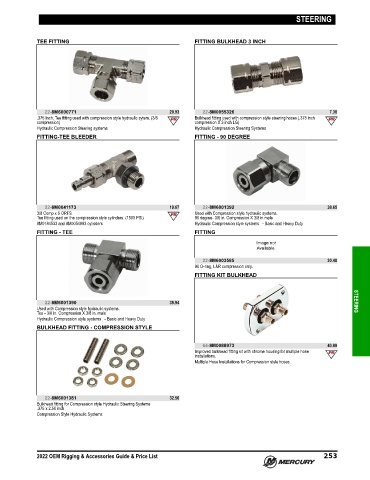

Page 266 - Rigging and Accessories Guide (2022) - 8M0187689
P. 266
STEERING
TEE FITTING FITTING BULKHEAD 3 INCH
22-8M6000771 20.93 22-8M0055326 7.30
.375 Inch, Tee fitting used with compression style hydraulic sytem. (3/8 Bulkhead fitting used with compression style steering hoses (.375 inch
compression) compression X 3 inch LG)
Hydraulic Compression Steering systems Hydraulic Compression Steering Systems
FITTING-TEE BLEEDER FITTING - 90 DEGREE
22-8M0041173 19.67 22-8M6001392 38.65
3/8 Comp x 6 ORFS Used with Compression style hydraulic systems.
Tee fitting used on the compression style cylinders (1500 PSI) 90 degree‑ 3/8 in. Compression X 3/8 in.male
8M0184533 and 8M0054993 cylinders Hydraulic Compression style systems ‑ Basic and Heavy Duty
FITTING - TEE FITTING
22-8M6003585 20.48
90 O‑ring, L&R compression only.
FITTING KIT BULKHEAD
22-8M6001390 39.94 STEERING
Used with Compression style hydraulic systems.
Tee ‑ 3/8 in. Compression X 3/8 in. male
Hydraulic Compression style systems ‑ Basic and Heavy Duty
BULKHEAD FITTING - COMPRESSION STYLE
64-8M0088973 43.89
Improved bulkhead fitting kit with chrome housing for multiple hose
installations.
Multiple Hose Installations for Compression style hoses.
22-8M6001381 32.56
Bulkhead fitting for Compression style Hydraulic Steering Systems
.375 x 2.50 inch
Compression Style Hydraulic Systems
2022 OEM Rigging & Accessories Guide & Price List 253
