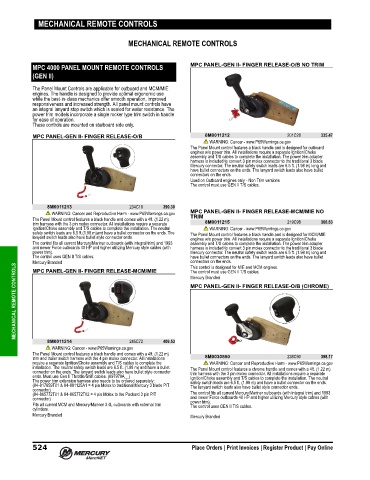

Page 537 - US ACCESSORIES GUIDE (2019)

MECHANICAL REMOTE CONTROLS

MECHANICAL REMOTE CONTROLS

MPC 4000 PANEL MOUNT REMOTE CONTROLS MPC PANEL-GEN II- FINGER RELEASE-O/B NO TRIM
(GEN II)

The Panel Mount Controls are applicable for outboard and MCM/MIE
engines. The handle is designed to provide optimal ergonomic use
while the best‑in‑class mechanics offer smooth operation, improved
responsiveness and increased strength. All panel mount controls have
an integral lanyard stop switch which is sealed for water resistance. The
power trim models incorporate a single rocker type trim switch in handle
for ease of operation.
These controls are mounted on starboard side only.

MPC PANEL-GEN II- FINGER RELEASE-O/B 8M0011212 201C28 335.47
WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a black handle and is designed for outboard
engines w/o power trim. All installations require a separate Ignition/Choke
assembly and T/S cables to complete the installation. The power trim adapter
harness is included to convert 3 pin molex connector to the traditional 3 blade
Mercury connector. The neutral safety switch leads are 6.5 ft. (1.98 m) long and
have bullet connectors on the ends. The lanyard switch leads also have bullet
connectors on the ends.
Used on Outboard engines only ‑ Non Trim versions
The control must use GEN II T/S cables.

8M0011213 234C18 390.30
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov MPC PANEL-GEN II- FINGER RELEASE-MCM/MIE NO
TRIM
The Panel Mount control features a black handle and comes with a 4ft. (1.22 m)
trim harness with the 3 pin molex connector. All installations require a separate 8M0011215 219C98 366.63
Ignition/Choke assembly and T/S cables to complete the installation. The neutral WARNING: Cancer - www.P65Warnings.ca.gov
safety switch leads are 6.5 ft.(1.98 m)and have a bullet connector on the ends. The The Panel Mount control features a black handle and is designed for MCM/MIE
lanyard switch leads also have bullet style connector ends. engines w/o power trim. All installations require a separate Ignition/Choke
The control fits all current Mercury/Mariner outboards (with integral trim) and 1993 assembly and T/S cables to complete the installation. The power trim adapter
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with harness is included to convert 3 pin molex connector to the traditional 3 blade
power trim). Mercury connector. The neutral safety switch leads are 6.5 ft. (1.98 m) long and
The control uses GEN II T/S cables. have bullet connectors on the ends. The lanyard switch leads also have bullet
Mercury Branded connectors on the ends.
MECHANICAL REMOTE CONTROLS MPC PANEL-GEN II- FINGER RELEASE-O/B (CHROME)
This control is designed for MIE and MCM engines.
MPC PANEL-GEN II- FINGER RELEASE-MCM/MIE
The control must use GEN II T/S cables.
Mercury Branded

8M0011214 245C72 409.53
WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a black handle and comes with a 4ft. (1.22 m)
trim and trailer switch harness with the 4 pin molex connector. All installations 8M0030550 238C90 398.17
require a separate Ignition/Choke assembly and T/S cables to complete the WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a bullet The Panel Mount control features a chrome handle and comes with a 4ft. (1.22 m)
connector on the ends. The lanyard switch leads also have bullet style connector trim harness with the 3 pin molex connector. All installations require a separate
ends. Must use Gen II Throttle/Shift cables. (897978A__) Ignition/Choke assembly and T/S cables to complete the installation. The neutral
The power trim extension harness also needs to be ordered separately: safety switch leads are 6.5 ft. (1.98 m) and have a bullet connector on the ends.
(84‑817659T01 & 84‑881125A1 = 4 pin Molex to traditional Mercury 3 blade P/T The lanyard switch leads also have bullet style connector ends.
connector)
(84‑865772T01 & 84‑865772T02 = 4 pin Molex to the Packard 3 pin P/T The control fits all current Mercury/Mariner outboards (with integral trim) and 1993
connector) and newer Force outboards 40 HP and higher utilizing Mercury style cables (with
power trim).
Fits all current MCM and Mercury/Mariner 3.4L outboards with external trim The control uses GEN II T/S cables.
cylinders.
Mercury Branded Mercury Branded
