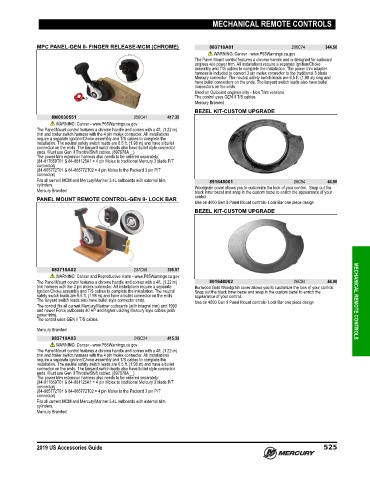

Page 538 - US ACCESSORIES GUIDE (2019)

MECHANICAL REMOTE CONTROLS

MPC PANEL-GEN II- FINGER RELEASE-MCM (CHROME) 883710A01 206C74 344.56
WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a chrome handle and is designed for outboard
engines w/o power trim. All installations require a separate Ignition/Choke
assembly and T/S cables to complete the installation. The power trim adapter
harness is included to convert 3 pin molex connector to the traditional 3 blade
Mercury connector. The neutral safety switch leads are 6.5 ft. (1.98 m) long and
have bullet connectors on the ends. The lanyard switch leads also have bullet
connectors on the ends.
Used on Outboard engines only ‑ Non Trim versions.
The control uses GEN II T/S cables.
Mercury Branded
BEZEL KIT-CUSTOM UPGRADE
8M0030551 250C41 417.35
WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a chrome handle and comes with a 4ft. (1.22 m)
trim and trailer switch harness with the 4 pin molex connector. All installations
require a separate Ignition/Choke assembly and T/S cables to complete the
installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a bullet
connector on the ends. The lanyard switch leads also have bullet style connector
ends. Must use Gen II Throttle/Shift cables. (897978A__)
The power trim extension harness also needs to be ordered separately:
(84‑817659T01 & 84‑881125A1 = 4 pin Molex to traditional Mercury 3 blade P/T
connector)
(84‑865772T01 & 84‑865772T02 = 4 pin Molex to the Packard 3 pin P/T
connector)
Fits all current MCM and Mercury/Mariner 3.4L outboards with external trim 891648001 26C94 44.90
cylinders. Woodgrain cover allows you to customize the look of your control. Snap out the
Mercury Branded black inner bezel and snap in the custom bezel to enrich the appearance of your
PANEL MOUNT REMOTE CONTROL-GEN II- LOCK BAR control.
Use on 4000 Gen II Panel Mount controls‑ Lock Bar one piece design
BEZEL KIT-CUSTOM UPGRADE

883710A02 237C58 395.97
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Panel Mount control features a chrome handle and comes with a 4ft. (1.22 m) 891648002 26C94 44.90
trim harness with the 3 pin molex connector. All installations require a separate Burlwood Gold Woodgrain cover allows you to customize the look of your control.
Ignition/Choke assembly and T/S cables to complete the installation. The neutral Snap out the black inner bezel and snap in the custom bezel to enrich the
safety switch leads are 6.5 ft. (1.98 m) and have a bullet connector on the ends. appearance of your control.
The lanyard switch leads also have bullet style connector ends. Use on 4000 Gen II Panel Mount controls‑ Lock Bar one piece design MECHANICAL REMOTE CONTROLS
The control fits all current Mercury/Mariner outboards (with integral trim) and 1993
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with
power trim).
The control uses GEN II T/S cables.
Mercury Branded
883710A03 249C24 415.39
WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a chrome handle and comes with a 4ft. (1.22 m)
trim and trailer switch harness with the 4 pin molex connector. All installations
require a separate Ignition/Choke assembly and T/S cables to complete the
installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a bullet
connector on the ends. The lanyard switch leads also have bullet style connector
ends. Must use Gen II Throttle/Shift cables. (897978A__)
The power trim extension harness also needs to be ordered separately:
(84‑817659T01 & 84‑881125A1 = 4 pin Molex to traditional Mercury 3 blade P/T
connector)
(84‑865772T01 & 84‑865772T02 = 4 pin Molex to the Packard 3 pin P/T
connector)
Fits all current MCM and Mercury/Mariner 3.4L outboards with external trim
cylinders.
Mercury Branded

2019 US Accessories Guide 525
