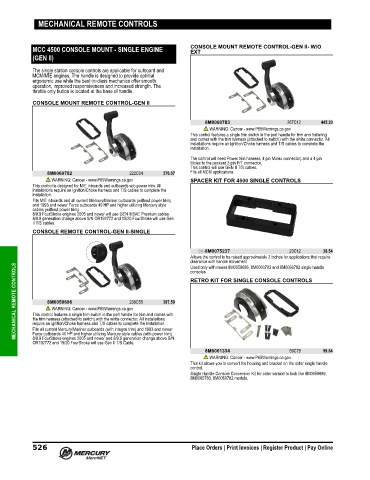

Page 539 - US ACCESSORIES GUIDE (2019)

MECHANICAL REMOTE CONTROLS

MCC 4500 CONSOLE MOUNT - SINGLE ENGINE CONSOLE MOUNT REMOTE CONTROL-GEN II- W/O
EXT
(GEN II)

The single station console controls are applicable for outboard and
MCM/MIE engines. The handle is designed to provide optimal
ergonomic use while the best‑in‑class mechanics offer smooth
operation, improved responsiveness and increased strength. The
throttle only button is located at the base of handle.

CONSOLE MOUNT REMOTE CONTROL-GEN II

8M0060783 267C12 445.20
WARNING: Cancer - www.P65Warnings.ca.gov
This control features a single trim switch in the port handle for trim and trailering
and comes with the trim harness (attached to switch) with the white connector. All
installations require an Ignition/Choke harness and T/S cables to complete the
installation.
The control will need Power trim harness, 4 pin Molex connector) and a 4 pin
Molex to the packard 3 pin P/T connector.
This control will use GEN II T/S cables.
8M0060782 222C04 370.07 Fits all MCM applications.
WARNING: Cancer - www.P65Warnings.ca.gov SPACER KIT FOR 4500 SINGLE CONTROLS
This control is designed for MIE inboards and outboards w/o power trim. All
installations require an Ignition/Choke harness and T/S cables to complete the
installation.
Fits MIE inboards and all current Mercury/Mariner outboards (without power trim)
and 1993 and newer Force outboards 40 HP and higher utilizing Mercury style
cables (without power trim).
8/9.9 FourStroke engines 2005 and newer will use GEN II/SAE Premium cables.
8/9.9 generation change above S/N OR192772 and 15/20 FourStroke will use Gen
II T/S cables.
CONSOLE REMOTE CONTROL-GEN II-SINGLE

98-8M0075237 23C12 38.54
Allows the control to be raised approximately 2 inches for applications that require
clearance with handle movement
MECHANICAL REMOTE CONTROLS This control features a single trim switch in the port handle for trim and comes with
Used only with newer 8M0059686, 8M0060783 and 8M0060782 single handle
consoles
RETRO KIT FOR SINGLE CONSOLE CONTROLS

238C55
8M0059686
397.59
WARNING: Cancer - www.P65Warnings.ca.gov
the trim harness (attached to switch) with the white connector. All installations
require an Ignition/Choke harness and T/S cables to complete the installation.
Fits all current Mercury/Mariner outboards (with integral trim) and 1993 and newer
Force outboards 40 HP and higher utilizing Mercury style cables (with power trim).
8/9.9 FourStroke engines 2005 and newer and 8/9.9 generation change above S/N
OR192772 and 15/20 FourStroke will use Gen II T/S Cable.
8M0061334 59C78 99.64
WARNING: Cancer - www.P65Warnings.ca.gov
This kit allows you to convert the housing and bracket on the older single handle
control.
Single Handle Console Conversion Kit for older version to look like 8M0059686,
8M0060783, 8M0060782 models.
