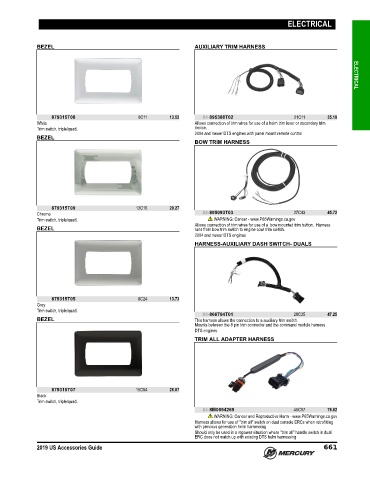

Page 674 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

BEZEL AUXILIARY TRIM HARNESS ELECTRICAL

879315T08 8C11 13.52 84-895388T02 21C11 35.18
White Allows connection of trim wires for use of a helm trim lever or secondary trim
Trim switch, triple/quad. device.
2004 and newer DTS engines with panel mount remote control
BEZEL
BOW TRIM HARNESS

879315T09 12C16 20.27
Chrome 84-895093T03 27C43 45.72
Trim switch, triple/quad. WARNING: Cancer - www.P65Warnings.ca.gov
Allows connection of trim wires for use of a bow mounted trim button. Harness
BEZEL runs from bow trim switch to engine cowl trim switch.
2004 and newer DTS engines
HARNESS-AUXILIARY DASH SWITCH- DUALS

879315T05 8C24 13.73
Grey
Trim switch, triple/quad.
84-866704T01 28C35 47.25
BEZEL This harness allows the connection to a auxiliary trim switch.
Mounts between the 8 pin trim connector and the command module harness
DTS engines
TRIM ALL ADAPTER HARNESS

879315T07 15C64 26.07
Black
Trim switch, triple/quad.
84-8M0094269 45C97 76.62
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Harness allows for use of "trim all" switch on dual console ERCs when retrofitting
with previous generation helm harnessing
Should only be used in a repower situation where "trim all" handle switch in dual
ERC does not match up with existing DTS helm harnessing
2019 US Accessories Guide 661
