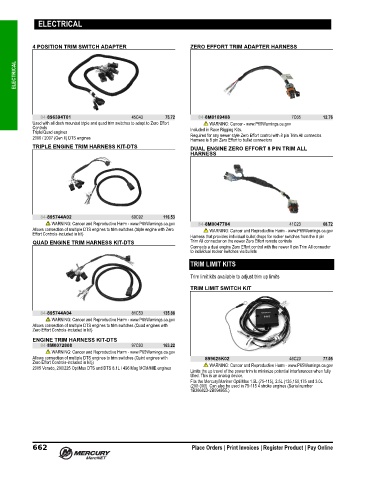

Page 675 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

4 POSITION TRIM SWITCH ADAPTER ZERO EFFORT TRIM ADAPTER HARNESS

ELECTRICAL

84-896394T01 45C43 75.72 84-8M0109408 7C65 12.76
Used with all dash mounted triple and quad trim switches to adapt to Zero Effort WARNING: Cancer - www.P65Warnings.ca.gov
Controls Included in Race Rigging Kits.
Triple/Quad engines
2006 / 2007 (Gen II) DTS engines Required for any newer style Zero Effort control with 8 pin Trim All connector.
Harness is 8 pin Zero Effort to bullet connectors
TRIPLE ENGINE TRIM HARNESS KIT-DTS DUAL ENGINE ZERO EFFORT 8 PIN TRIM ALL
HARNESS

84-895744A02 69C92 116.53
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 84-8M0047784 41C23 68.72
Allows connection of multiple DTS engines to trim switches (triple engine with Zero WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Effort Controls‑included in kit)
Harness that provides individual bullet drops for rocker switches from the 8 pin
QUAD ENGINE TRIM HARNESS KIT-DTS Trim All connector on the newer Zero Effort remote controls
Connects a dual engine Zero Effort control with the newer 8 pin Trim All connector
to individual rocker switches via bullets
TRIM LIMIT KITS
Trim limit kits available to adjust trim up limits

TRIM LIMIT SWITCH KIT

84-895744A04 81C53 135.88
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Allows connection of multiple DTS engines to trim switches (Quad engines with
Zero Effort Controls‑included in kit)
ENGINE TRIM HARNESS KIT-DTS
84-8M0072808 97C93 163.22
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Allows connection of multiple DTS engines to trim switches (Quint engines with 899625K02 46C23 77.05
Zero Effort Controls‑included in kit)) WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
2005 Verado, 200/225 OptiMax DTS and DTS 8.1L / 496 Mag MCM/MIE engines
Limits the up travel of the power trim to minimize potential interferences when fully
tilted. This is an analog device.
Fits the Mercury/Mariner Opti Max 1.5L (75‑115), 2.5L (135,150,175 and 3.0L
(200‑300) Can also be used in 75‑115 4 stroke engines (Serial number
1B366823‑2B094955.)
