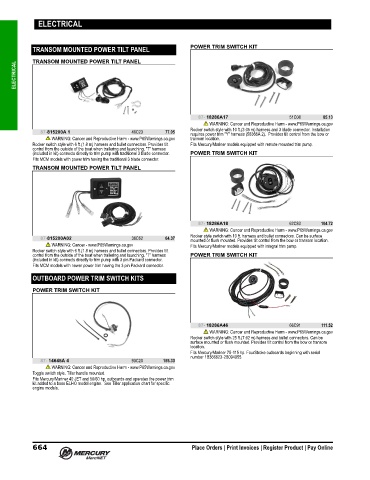

Page 677 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

TRANSOM MOUNTED POWER TILT PANEL POWER TRIM SWITCH KIT

TRANSOM MOUNTED POWER TILT PANEL
ELECTRICAL

87- 18286A17 51C08 85.13
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
87-815200A 1 46C23 77.05 Rocker switch style with 10 ft.(3.05 m) harness and 3 blade connector. Installation
requires power trim "Y" harness (58366A 2). Provides tilt control from the bow or
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov transom location.
Rocker switch style with 6 ft.(1.8 m) harness and bullet connectors. Provides tilt Fits Mercury/Mariner models equipped with remote mounted trim pump.
control from the outside of the boat when trailering and launching. "T" harness
(included in kit) connects directly to trim pump with traditional 3 blade connector. POWER TRIM SWITCH KIT
Fits MCM models with power trim having the traditional 3 blade connector.
TRANSOM MOUNTED POWER TILT PANEL

87- 18286A18 62C83 104.72
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rocker style switch with 10 ft. harness and bullet connectors. Can be surface
87-815200A02 38C62 64.37 mounted or flush mounted. Provides tilt control from the bow or transom location.
WARNING: Cancer - www.P65Warnings.ca.gov Fits Mercury/Mariner models equipped with integral trim pump.
Rocker switch style with 6 ft.(1.8 m) harness and bullet connectors. Provides tilt
control from the outside of the boat when trailering and launching. "T" harness POWER TRIM SWITCH KIT
(included in kit) connects directly to trim pump with 3 pin Packard connector.
Fits MCM models with newer power trim having the 3 pin Packard connector.
OUTBOARD POWER TRIM SWITCH KITS

POWER TRIM SWITCH KIT

87- 18286A46 66C91 111.52
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rocker switch style with 25 ft.(7.62 m) harness and bullet connectors. Can be
surface mounted or flush mounted. Provides tilt control from the bow or transom
location.
Fits Mercury/Mariner 75‑115 hp. FourStroke outboards beginning with serial
number 1B366823‑2B094955.
87- 14645A 4 93C20 155.33
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Toggle switch style. Tiller handle mounted.
Fits Mercury/Mariner 40 JET and 50/60 hp. outboards and operates the power trim
kit added to a base ELHO model engine. See Tiller application chart for specific
engine models.

664 Place Orders | Print Invoices | Register Product | Pay Online
