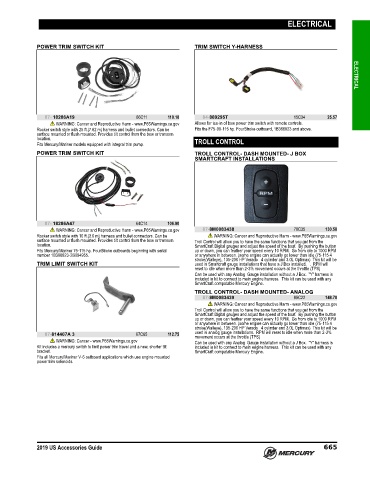

Page 678 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

POWER TRIM SWITCH KIT TRIM SWITCH Y-HARNESS ELECTRICAL

87- 18286A19 66C11 110.18 84-889295T 15C34 25.57
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Allows for tee‑in of bow power trim switch with remote controls.
Rocker switch style with 25 ft.(7.62 m) harness and bullet connectors. Can be Fits the F75‑90‑115 hp. FourStroke outboard, 1B366823 and above.
surface mounted or flush mounted. Provides tilt control from the bow or transom
location. TROLL CONTROL
Fits Mercury/Mariner models equipped with integral trim pump.
POWER TRIM SWITCH KIT TROLL CONTROL- DASH MOUNTED- J BOX
SMARTCRAFT INSTALLATIONS

87- 18286A47 64C14 106.90
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 87-8M0083438 78C35 130.58
Rocker switch style with 10 ft.(3.0 m) harness and bullet connectors. Can be WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
surface mounted or flush mounted. Provides tilt control from the bow or transom Troll Control will allow you to have the same functions that you get from the
location. SmartCraft Digital gauges and adjust the speed of the boat. By pushing the button
Fits Mercury/Mariner 75‑115 hp. FourStroke outboards beginning with serial up or down, you can feather your speed every 10 RPM. Go from idle to 1000 RPM
number 1B366823‑2B094955. or anywhere in between. (some engine can actually go lower than idle (75‑115 4
stroke(Walleye), 135‑200 HP Verado 4 cylinder and 3.0L Optimax) This kit will be
TRIM LIMIT SWITCH KIT used in Smartcraft gauge installations that have a J Box installed. . RPM will
reset to idle when more than 2‑3% movement occurs at the throttle (TPS)
Can be used with any Analog Gauge installation without a J Box. "Y" harness is
included in kit to connect to main engine hanress. This kit can be used with any
SmartCraft compatable Mercury Engine.
TROLL CONTROL- DASH MOUNTED- ANALOG
87-8M0083439 89C22 148.70
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Troll Control will allow you to have the same functions that you get from the
SmartCraft Digital gauges and adjust the speed of the boat. By pushing the button
up or down, you can feather your speed every 10 RPM. Go from idle to 1000 RPM
or anywhere in between. (some engine can actually go lower than idle (75‑115 4
stroke(Walleye), 135‑200 HP Verado 4 cylinder and 3.0L Optimax) This kit will be
87-814407A 3 67C65 112.75 used in analog gauge installations. RPM will reset to idle when more than 2‑3%
movement occurs at the throttle (TPS)
WARNING: Cancer - www.P65Warnings.ca.gov Can be used with any Analog Gauge installation without a J Box. "Y" harness is
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt included in kit to connect to main engine hanress. This kit can be used with any
bracket. SmartCraft compatable Mercury Engine.
Fits all Mercury/Mariner V‑6 outboard applications which use engine mounted
power trim solenoids.

2019 US Accessories Guide 665
