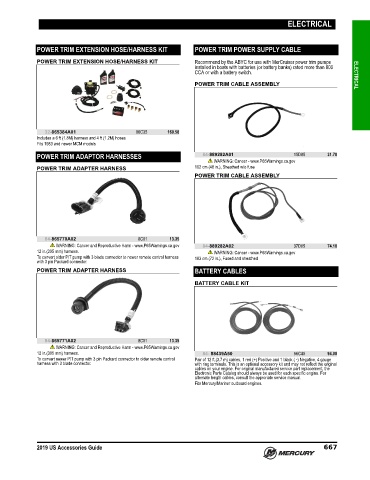

Page 680 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

POWER TRIM EXTENSION HOSE/HARNESS KIT POWER TRIM POWER SUPPLY CABLE

POWER TRIM EXTENSION HOSE/HARNESS KIT Recommend by the ABYC for use with MerCruiser power trim pumps
installed in boats with batteries (or battery banks) rated more than 800
CCA or with a battery switch. ELECTRICAL

POWER TRIM CABLE ASSEMBLY

32-865384A01 96C35 160.58
Includes a 6 ft (1.8M) harness and 4 ft (1.2M) hoses
Fits 1983 and newer MCM models
POWER TRIM ADAPTOR HARNESSES 84-889282A01 15D85 31.70
WARNING: Cancer - www.P65Warnings.ca.gov
POWER TRIM ADAPTER HARNESS 102 cm (48 in.), Sheathed w/o fuse
POWER TRIM CABLE ASSEMBLY

84-865770A02 8C01 13.35
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 84-889282A02 37D05 74.10
12 in.(305 mm) harness. WARNING: Cancer - www.P65Warnings.ca.gov
To convert older P/T pump with 3 blade connector to newer remote control harness 183 cm (72 in.), Fused and sheathed
with 3 pin Packard connector.
POWER TRIM ADAPTER HARNESS BATTERY CABLES

BATTERY CABLE KIT

84-865771A02 8C01 13.35
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
12 in.(305 mm) harness. 84- 88439A50 56C40 94.00
To convert newer P/T pump with 3 pin Packard connector to older remote control Pair of 12 ft.(3.7 m) cables, 1 red (+) Positive and 1 black ( ‑) Negative, 4 gauge
harness with 3 blade connector. with ring terminals. This is an optional accessory kit and may not reflect the original
cables on your engine. For original manufactured service part replacement, the
Electronic Parts Catalog should always be used for each specific engine. For
alternate length cables, consult the approriate service manual.
Fits Mercury/Mariner outboard engines.

2019 US Accessories Guide 667
