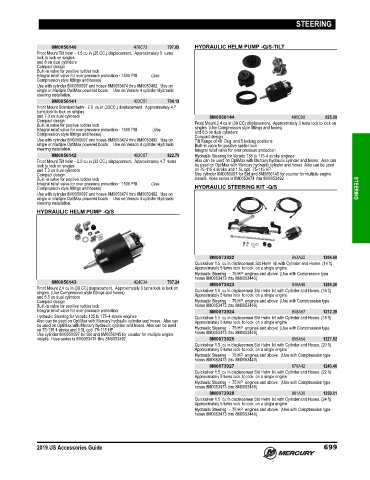

Page 712 - US ACCESSORIES GUIDE (2019)

STEERING

8M0056140 478C73 797.89 HYDRAULIC HELM PUMP -Q/S-TILT
Front Mount Tilt helm ‑ 1.5 cu in (25 CC.) displacement. Approximately 5 turns
lock to lock on singles
and 8 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection ‑ 1500 PSI (Use
Compression style fittings and hoses)
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic
steering installation.
8M0056141 422C51 704.19
Front Mount Standard helm ‑ 2.0 cu in (33CC.) displacement. Approximately 4.7
turns lock to lock on singles
and 7.3 on dual cylinders 8M0056144 495C06 825.09
Compact design
Built‑in valve for positive rudder lock Front Mount 2.4 cu in (39 CC) displacement. Approximately 3 turns lock to lock on
Integral relief valve for over pressure protection ‑ 1500 PSI (Use singles (Use Compression style fittings and hoses)
and 6.5 on dual cylinders
Compression style fittings and hoses) Compact design
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on Tilt Range of 48 Deg and 5 locking positions
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic Built‑in valve for positive rudder lock
steering installation. Integral relief valve for over pressure protection
8M0056142 493C67 822.79 Hydraulic Steering for Verado 135 to 175‑4 stroke engines
Front Mount Tilt helm ‑ 2.0 cu in (33 CC.) displacement. Approximately 4.7 turns Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can
lock to lock on singles be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
and 7.3 on dual cylinders on 75‑115 4 stroke and 1.5L opti 75‑115 HP
Compact design Use cylinder 8M0050097 for Std and 8M0056145 for counter for multiple engine
Built‑in valve for positive rudder lock installs. Hose series is 8M0053474 thru 8M0053492
Integral relief valve for over pressure protection ‑ 1500 PSI (Use
Compression style fittings and hoses) HYDRAULIC STEERING KIT -Q/S STEERING
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic
steering installation.
HYDRAULIC HELM PUMP -Q/S

8M0073922 843A22 1204.60
Quicksilver 1.5 cu in displacement Std Helm kit with Cylinder and Hoses. (14 ft)
Approximately 5 turns lock to lock on a single engine
Hydraulic Steering ‑ 75 HP engines and above (Use with Compression type
hoses 8M0053473 thru 8M0053449)
8M0056143 424C34 707.24 8M0073923 846A48 1209.26
Front Mount 2.4 cu in (39 CC) displacement. Approximately 3 turns lock to lock on
singles (Use Compression style fittings and hoses) Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (16 ft)
Approximately 5 turns lock to lock on a single engine
and 6.5 on dual cylinders
Compact design Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
Built‑in valve for positive rudder lock hoses 8M0053473 thru 8M0053449)
Integral relief valve for over pressure protection 8M0073924 848A67 1212.39
Hydraulic Steering for Verado 135 to 175‑4 stroke engines Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (18 ft)
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can Approximately 5 turns lock to lock on a single engine
be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
on 75‑115 4 stroke and 1.5L opti 75‑115 HP Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
Use cylinder 8M0050097 for Std and 8M0056145 for counter for multiple engine hoses 8M0053473 thru 8M0053449)
installs. Hose series is 8M0053474 thru 8M0053492 8M0073925 859A54 1227.92
Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (20 ft)
Approximately 5 turns lock to lock on a single engine
Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
hoses 8M0053473 thru 8M0053449)
8M0073927 870A42 1243.46
Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (22 ft)
Approximately 5 turns lock to lock on a single engine
Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
hoses 8M0053473 thru 8M0053449)
8M0073928 881A30 1259.01
Quicksilver 1.5 cu in displacemen Std Helm kit with Cylinder and Hoses. (24 ft)
Approximately 5 turns lock to lock on a single engine
Hydraulic Steering ‑ 75 HP engines and above (Use with Comptression type
hoses 8M0053473 thru 8M0053449)

2019 US Accessories Guide 699
