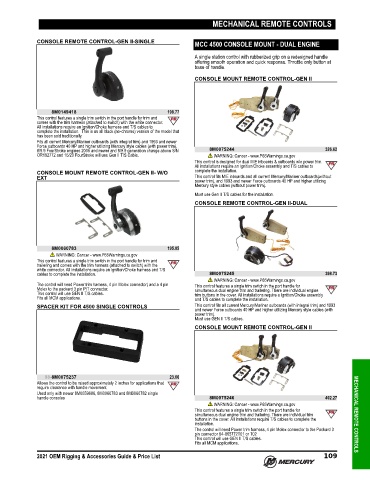

Page 122 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MECHANICAL REMOTE CONTROLS

CONSOLE REMOTE CONTROL-GEN II-SINGLE MCC 4500 CONSOLE MOUNT - DUAL ENGINE

A single station control with rubberized grip on a redesigned handle
offering smooth operation and quick response. Throttle only button at
base of handle.

CONSOLE MOUNT REMOTE CONTROL-GEN II

8M0149418 198.77
This control features a single trim switch in the port handle for trim and
comes with the trim harness (attached to switch) with the white connector.
All installations require an Ignition/Choke harness and T/S cables to
complete the installation. This is an all black (no‑chrome) version of the model that
has been sold traditionally.
Fits all current Mercury/Mariner outboards (with integral trim) and 1993 and newer
Force outboards 40 HP and higher utilizing Mercury style cables (with power trim).
8/9.9 FourStroke engines 2005 and newer and 8/9.9 generation change above S/N 8M0075244 326.62
OR192772 and 15/20 FourStroke will use Gen II T/S Cable. WARNING: Cancer - www.P65Warnings.ca.gov
This control is designed for dual MIE inboards & outboards w/o power trim.
All installations require an Ignition/Choke assembly and T/S cables to
CONSOLE MOUNT REMOTE CONTROL-GEN II- W/O complete the installation.
EXT This control fits MIE inboards and all current Mercury/Mariner outboards(without
power trim), and 1993 and newer Force outboards 40 HP and higher utilizing
Mercury style cables (without power trim).
Must use Gen II T/S cables for the installation.
CONSOLE REMOTE CONTROL-GEN II-DUAL

8M0060783 195.05
WARNING: Cancer - www.P65Warnings.ca.gov
This control features a single trim switch in the port handle for trim and
trailering and comes with the trim harness (attached to switch) with the
white connector. All installations require an Ignition/Choke harness and T/S
cables to complete the installation. 8M0075245 398.73
WARNING: Cancer - www.P65Warnings.ca.gov
The control will need Power trim harness, 4 pin Molex connector) and a 4 pin This control features a single trim switch in the port handle for
Molex to the packard 3 pin P/T connector. simultaneous dual engine trim and trailering. There are individual engine
This control will use GEN II T/S cables. trim buttons in the cover. All installations require a Ignition/Choke assembly
Fits all MCM applications. and T/S cables to complete the installation.
SPACER KIT FOR 4500 SINGLE CONTROLS This control fits all current Mercury/Mariner outboards (with integral trim) and 1993
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with
power trim).
Must use GEN II T/S cables.
CONSOLE MOUNT REMOTE CONTROL-GEN II

98-8M0075237 23.66
Allows the control to be raised approximately 2 inches for applications that
require clearance with handle movement
Used only with newer 8M0059686, 8M0060783 and 8M0060782 single
handle consoles 8M0075246 402.27
WARNING: Cancer - www.P65Warnings.ca.gov
This control features a single trim switch in the port handle for
simultaneous dual engine trim and trailering. There are individual trim MECHANICAL REMOTE CONTROLS
buttons in the cover. All installations require T/S cables to complete the
installation.
The control will need Power trim harness, 4 pin Molex connector to the Packard 3
pin connector 84‑865772T01 or T02
This control will use GEN II T/S cables.
Fits all MCM applications.
2021 OEM Rigging & Accessories Guide & Price List 109
