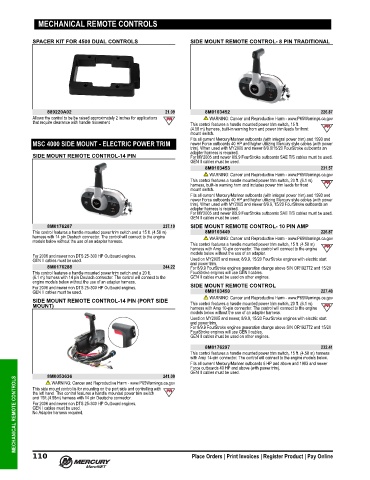

Page 123 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MECHANICAL REMOTE CONTROLS

SPACER KIT FOR 4500 DUAL CONTROLS SIDE MOUNT REMOTE CONTROL- 8 PIN TRADITIONAL

889220A02 21.09 8M0103452 226.87
Allows the control to be be raised approximately 2 inches for applications WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
that require clearance with handle movement This control features a handle mounted power trim switch, 15 ft.
(4.58 m) harness, built‑in warning horn and power trim leads for front
mount switch.
Fits all current Mercury/Mariner outboards (with integral power trim) and 1993 and
MSC 4000 SIDE MOUNT - ELECTRIC POWER TRIM newer Force outboards 40 HP and higher utilizing Mercury style cables (with power
trim). When used with MY2005 and newer 8/9.9/15/20 FourStroke outboards an
adapter harness is required.
SIDE MOUNT REMOTE CONTROL-14 PIN For MY2005 and newer 8/9.9 FourStroke outboards SAE T/S cables must be used.
GEN II cables must be used.
8M0103453 231.57
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This control features a handle mounted power trim switch, 20 ft. (6.1 m)
harness, built‑in warning horn and includes power trim leads for front
mount switch.
Fits all current Mercury/Mariner outboards (with integral power trim) and 1993 and
newer Force outboards 40 HP and higher utilizing Mercury style cables (with power
trim). When used with MY2005 and newer 8/9.9, 15/20 FourStroke outboards an
adapter harness is required.
For MY2005 and newer 8/9.9 FourStroke outboards SAE T/S cables must be used.
GEN II cables must be used.
8M0176287 237.19 SIDE MOUNT REMOTE CONTROL- 10 PIN AMP
This control features a handle mounted power trim switch and a 15 ft. (4.58 m) 8M0103449 226.87
harness with 14 pin Deutsch connector. The control will connect to the engine WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
models below without the use of an adapter harness.
This control features a handle mounted power trim switch, 15 ft. (4.58 m)
harness with Amp 10‑pin connector. The control will connect to the engine
For 2006 and newer non DTS 25‑300 HP Outboard engines. models below without the use of an adapter.
GEN II cables must be used. Used on MY2005 and newer, 8/9.9, 15/20 FourStroke engines with electric start
and power trim.
8M0176288 244.22 For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
This control features a handle mounted power trim switch and a 20 ft. FourStroke engines will use GEN I cables.
(6.1 m) harness with 14 pin Deutsch connector. The control will connect to the GEN II cables must be used on other engines.
engine models below without the use of an adapter harness.
For 2006 and newer non DTS 25‑300 HP Outboard engines. SIDE MOUNT REMOTE CONTROL
GEN II cables must be used. 8M0103450 227.48
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SIDE MOUNT REMOTE CONTROL-14 PIN (PORT SIDE
MOUNT) This control features a handle mounted power trim switch, 20 ft. (6.1 m)
harness with Amp 10‑pin connector. The control will connect to the engine
models below without the use of an adapter harness.
Used on MY2005 and newer, 8/9.9, 15/20 FourStroke engines with electric start
and power trim.
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
FourStroke engines will use GEN I cables.
GEN II cables must be used on other engines.
8M0176297 232.41
This control features a handle mounted power trim switch, 15 ft. (4.58 m) harness
with Amp 14‑pin connector. The control will connect to the engine models below.
Fits all current Mercury/Mariner outboards 6 HP and above and 1993 and newer
Force outboards 40 HP and above (with power trim).
GEN II cables must be used.
241.09
8M0053636
MECHANICAL REMOTE CONTROLS and 15ft.(4.58m) harness with 14 pin Deutsche connector.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This side mount control is for mounting on the port side and controlling with
the left hand. This control features a handle mounted power trim switch
For 2006 and newer non DTS 25‑300 HP Outboard engines.
GEN I cables must be used.
No Adapter harness required.
