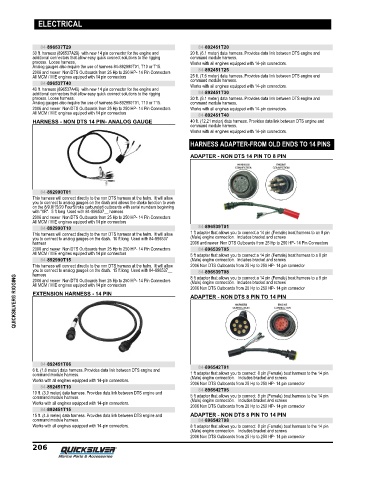

Page 215 - Quicksilver Product Guide (2020) - 8M0163242

ELECTRICAL

84-896537T29 84-892451T20
30 ft. harness (896537A29) with new 14 pin connector for the engine and 20 ft. (6.1 meter) data harness. Provides data link between DTS engine and
additional connectors that allow easy quick connect solutions to the rigging command module harness.
process. Loose harness. Works with all engines equipped with 14‑pin connectors.
Analog gauges also require the use of harness 84‑892990T01, T10 or T15.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 84-892451T25
All MCM / MIE engines equiped with 14 pin connectors 25 ft. (7.6 meter) data harness. Provides data link between DTS engine and
84-896537T40 command module harness.
Works with all engines equipped with 14‑pin connectors.
40 ft. harness (896537A40) with new 14 pin connector for the engine and
additional connectors that allow easy quick connect solutions to the rigging 84-892451T30
process. Loose harness. 30 ft. (9.1 meter) data harness. Provides data link between DTS engine and
Analog gauges also require the use of harness 84‑892990T01, T10 or T15. command module harness.
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors Works with all engines equipped with 14‑pin connectors.
All MCM / MIE engines equiped with 14 pin connectors
84-892451T40
HARNESS - NON DTS 14 PIN- ANALOG GAUGE 40 ft. (12.21 meter) data harness. Provides data link between DTS engine and
command module harness.
Works with all engines equipped with 14‑pin connectors.
HARNESS ADAPTER-FROM OLD ENDS TO 14 PINS

ADAPTER - NON DTS 14 PIN TO 8 PIN

84-892990T01
This harness will connect directly to the non DTS harness at the helm. It will allow
you to connect to analog gauges on the dash and allows the choke function to work
on the 8/9.9/15/20 FourStroke carbureted outboards with serial numbers beginning
with "0R". 5 ft long Used with 84‑896537__ harness
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
All MCM / MIE engines equiped with 14 pin connectors
84-892990T10 84-896539T01
This harness will connect directly to the non DTS harness at the helm. It will allow 1 ft adapter that allows you to connect a 14 pin (Female) boat harness to an 8 pin
you to connect to analog gauges on the dash. 10 ft long Used with 84‑896537__ (Male) engine connection. Includes bracket and screws
harness 2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 84-896539T05
All MCM / MIE engines equiped with 14 pin connectors 5 ft adapter that allows you to connect a 14 pin (Female) boat harness to a 8 pin
84-892990T15 (Male) engine connection. Includes bracket and screws
This harness will connect directly to the non DTS harness at the helm. It will allow 2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
you to connect to analog gauges on the dash. 15 ft long Used with 84‑896537__ 8 ft adapter that allows you to connect a 14 pin (Female) boat harness to a 8 pin
84-896539T08
harness
QUICKSILVER® RIGGING EXTENSION HARNESS - 14 PIN 2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors
(Male) engine connection. Includes bracket and screws
All MCM / MIE engines equiped with 14 pin connectors
ADAPTER - NON DTS 8 PIN TO 14 PIN

84-892451T06
6 ft. (1.8 meter) data harness. Provides data link between DTS engine and 84-896542T01
command module harness. 1 ft adapter that allows you to connect 8 pin (Female) boat harness to the 14 pin
Works with all engines equipped with 14‑pin connectors. (Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
84-892451T10
10 ft. (3.0 meter) data harness. Provides data link between DTS engine and 84-896542T05
command module harness. 5 ft adapter that allows you to connect 8 pin (Female) boat harness to the 14 pin
(Male) engine connection. Includes bracket and screws
Works with all engines equipped with 14‑pin connectors. 2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
84-892451T15
15 ft. (4.6 meter) data harness. Provides data link between DTS engine and ADAPTER - NON DTS 8 PIN TO 14 PIN
command module harness. 84-896542T08
Works with all engines equipped with 14‑pin connectors. 8 ft adapter that allows you to connect 8 pin (Female) boat harness to the 14 pin
(Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
206
