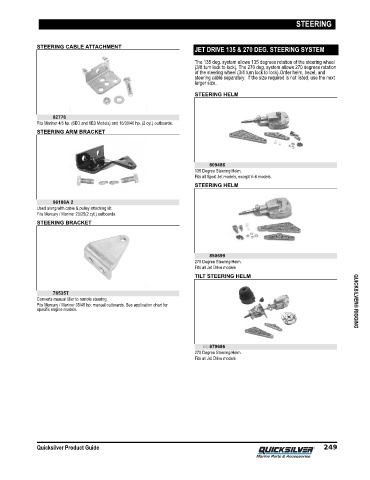

Page 258 - Quicksilver Product Guide (2020) - 8M0163242

STEERING

STEERING CABLE ATTACHMENT
JET DRIVE 135 & 270 DEG. STEERING SYSTEM
The 135 deg. system allows 135 degrees rotation of the steering wheel
(3/8 turn lock to lock). The 270 deg. system allows 270 degrees rotation
of the steering wheel (3/4 turn lock to lock).Order helm, bezel, and
steering cable separately. If the size required is not listed, use the next
larger size.

STEERING HELM

82776
Fits Mariner 4/5 hp. (6EO and 6E3 Models) and 15/30/40 hp. (2 cyl.) outboards.
STEERING ARM BRACKET

809486
135 Degree Steering Helm.
Fits all Sport Jet models, except V‑6 models.
STEERING HELM

96186A 2
Used along with cable & pulley attaching kit.
Fits Mercury / Mariner 20/25(2 cyl.) outboards.
STEERING BRACKET

850699
270 Degree Steering Helm.
Fits all Jet Drive models
TILT STEERING HELM

76535T
Converts manual tiller to remote steering. QUICKSILVER® RIGGING
Fits Mercury / Mariner 35/45 hp. manual outboards. See application chart for
specific engine models.

64-879686
270 Degree Steering Helm.
Fits all Jet Drive models

Quicksilver Product Guide 249
