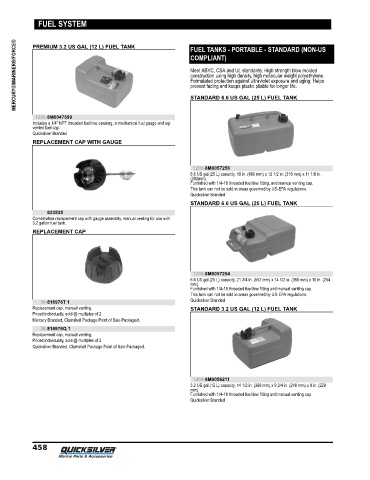

Page 467 - Quicksilver Product Guide (2020) - 8M0163242

FUEL SYSTEM

MERCURY®/MARINER®/FORCE® FUEL TANKS - PORTABLE - STANDARD (NON-US
PREMIUM 3.2 US GAL (12 L) FUEL TANK
COMPLIANT)

Meet ABYC, CSA and UL standards. High strength blow molded
construction using high density, high molecular weight polyethylene.
Formulated protection against ultraviolet exposure and aging. Helps
prevent fading and keeps plastic pliable for longer life.

1200-8M0047599 STANDARD 6.6 US GAL (25 L) FUEL TANK
Includes a 1/4" NPT threaded fuel line opening, a mechanical fuel gauge and top
vented fuel cap.
Quicksilver Branded
REPLACEMENT CAP WITH GAUGE

1200-8M0057256
6.6 US gal (25 L) capacity, 19 in. (480 mm) x 12 1/2 in. (318 mm) x 11 1/8 in.
(282mm).
Furnished with 1/4‑18 threaded fuel line fitting, and manual venting cap.
This tank can not be sold in areas governed by US‑EPA regulations.
Quicksilver Branded
STANDARD 6.6 US GAL (25 L) FUEL TANK
823535
Combination replacement cap with gauge assembly, manual venting for use with
3.2 gallon fuel tank.
REPLACEMENT CAP

1200-8M0057254
6.6 US gal (25 L) capacity, 21 3/4 in. (552 mm) x 14 1/2 in. (368 mm) x 10 in. (254
mm).
Furnished with 1/4‑18 threaded fuel line fitting and manual venting cap.
This tank can not be sold in areas governed by US‑EPA regulations.
36-816976T 1 Quicksilver Branded
Replacement cap, manual venting. STANDARD 3.2 US GAL (12 L) FUEL TANK
Priced individually, sold @ multiples of 2
Mercury Branded, Clamshell Package Point of Sale Packaged.
36-816976Q 1
Replacement cap, manual venting.
Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.

1200-8M0056211
3.2 US gal (12 L) capacity, 14 1/2 in. (368 mm) x 9 3/4 in. (248 mm) x 9 in. (229
mm).
Furnished with 1/4‑18 threaded fuel line fitting and manual venting cap.
Quicksilver Branded

458
