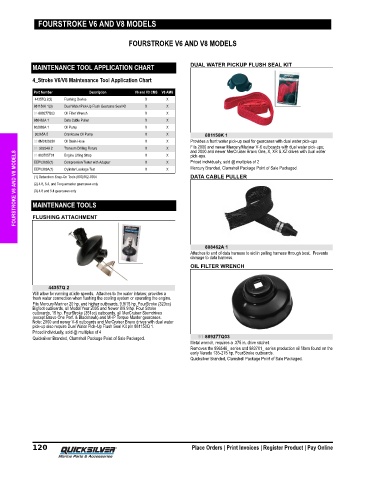

Page 127 - Mercury Service Tool Guide (2020) - 8M0163249

FOURSTROKE V6 AND V8 MODELS

FOURSTROKE V6 AND V8 MODELS

MAINTENANCE TOOL APPLICATION CHART DUAL WATER PICKUP FLUSH SEAL KIT

4_Stroke V6/V8 Maintenance Tool Application Chart
Part Number Description V6 and V8 CMS V8 AMS
44357Q 2(2) Flushing Device X X
881150K 1(3) Dual Water Pick-Up Flush Gearcase Seal Kit X X
91-889277Q03 Oil Filter Wrench X X
888462A 1 Data Cable Puller X X
802889A 1 Oil Pump X X
90265A 5 Crankcase Oil Pump X X 881150K 1
32-8M0129230 Oil Drain Hose X X Provides a front water pick‑up seal for gearcases with dual water pick‑ups
91- 98234A 2 Transom Drilling Fixture X X X X X X Fits 2000 and newer Mercury/Mariner V‑6 outboards with dual water pick‑ups;
and 2000 and newer MerCruiser Bravo One, X, XR & XZ drives with dual water
FOURSTROKE V6 AND V8 MODELS MAINTENANCE TOOLS X X Mercury Branded, Clamshell Package Point of Sale Packaged.
91-883705T01
Engine Lifting Strap
pick‑ups.
Priced individually, sold @ multiples of 2
EEPV303B(1)
Compression Tester with Adapter
EEPV309A(1)
Cylinder Leakage Test
DATA CABLE PULLER
(1) Order from Snap-On Tools (800)762-7664
(2) 4.8, 5.4, and Torquemaster gearcases only
(3) 4.8 and 5.4 gearcases only
FLUSHING ATTACHMENT

888462A 1
Attaches to end of data harness to aid in pulling harness through boat. Prevents
damage to data harness.
OIL FILTER WRENCH

44357Q 2
Will allow for running at idle speeds. Attaches to the water intakes; provides a
fresh water connection when flushing the cooling system or operating the engine.
Fits Mercury/Mariner 20 hp. and higher outboards, 9.9/15 hp. FourStroke (323cc)
Bigfoot outboards, all Model Year 2005 and Newer 8/9.9 hp. Four Stroke
outboards, 15 hp. FourStroke (351cc) outboards, all MerCruiser Sterndrives
(except Bravo One Perf. & Blackhawk) and MHP Torque Master gearcases.
Note: 2000 and newer V‑6 outboards and MerCruiser Bravo drives with dual water
pick‑up also require Dual Water Pick‑Up Flush Seal Kit p/n 881150Q 1.
Priced individually, sold @ multiples of 4
Quicksilver Branded, Clamshell Package Point of Sale Packaged. 91-889277Q03
Metal wrench, requires a .375 in. drive ratchet.
Removes the 896546_ series and 883701_ series production oil filters found on the
early Verado 135‑275 hp. FourStroke outboards.
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
