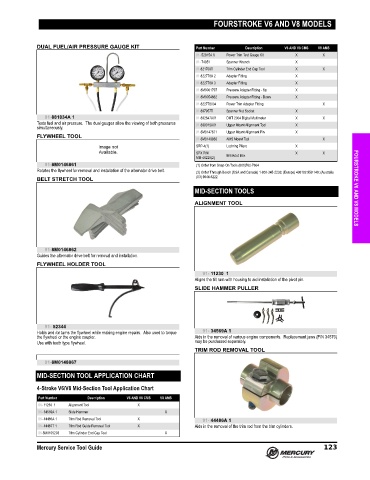

FOURSTROKE V6 AND V8 MODELS

DUAL FUEL/AIR PRESSURE GAUGE KIT Part Number Description V6 AND V8 CMS V8 AMS
91- 52915A 6 Power Trim Test Gauge Kit X X
91- 74951 Spanner Wrench X
91-821709T Trim Cylinder End Cap Tool X X
91-822778A 2 Adapter Fitting X
91-822778A 3 Adapter Fitting X
91-8M0061797 Pressure Adapter Fitting - Up X
91-8M0054662 Pressure Adapter Fitting - Down X
91-822778004 Power Trim Adapter Fitting X
91-897957T Spanner Nut Socket X
91-881834A 1 91-892647A01 DMT 2004 Digital Multimeter X X
Tests fuel and air pressure. The dual gauges allow the viewing of both pressures 91-899015A01 Upper Mount Alignment Tool X
simultaneously.
91-8M0147671 Upper Mount Alignment Pin X
FLYWHEEL TOOL
91-8M0148868 AMS Mount Tool X
SRP-4(1) Lockring Pliers X
SPX P/N Breakout Box X X
MM-46225(2)
91-8M0146861 (1) Order from Snap-On Tools (800)762-7664
Rotates the flywheel for removal and installation of the alternator drive belt. (2) Order Through Bosch (USA and Canada) 1-800-345-2233; (Europe) 496182 959 149; (Australia
BELT STRETCH TOOL (03) 9544-6222

MID-SECTION TOOLS FOURSTROKE V6 AND V8 MODELS
ALIGNMENT TOOL

91-8M0146862
Guides the alternator drive belt for removal and installation.
FLYWHEEL HOLDER TOOL
91- 11230 1
Aligns the tilt ram with housing to aid installation of the pivot pin.
SLIDE HAMMER PULLER

91- 52344
Holds and /or turns the flywheel while making engine repairs. Also used to torque 91- 34569A 1
the flywheel or the engine coupler. Aids in the removal of various engine components. Replacement jaws (P/N 34570)
Use with teeth type flywheel. may be purchased separately.
TRIM ROD REMOVAL TOOL
91-8M0148867

MID-SECTION TOOL APPLICATION CHART
4‑Stroke V6/V8 Mid‑Section Tool Application Chart

Part Number Description V6 AND V8 CMS V8 AMS
91- 11230 1 Alignment Tool X
91- 34569A 1 Slide Hammer X
91- 44486A 1 Trim Rod Removal Tool X 91- 44486A 1
91- 44487T 1 Trim Rod Guide Removal Tool X Aids in the removal of the trim rod from the trim cylinders.
91-8M0105203 Trim Cylinder End Cap Tool X
