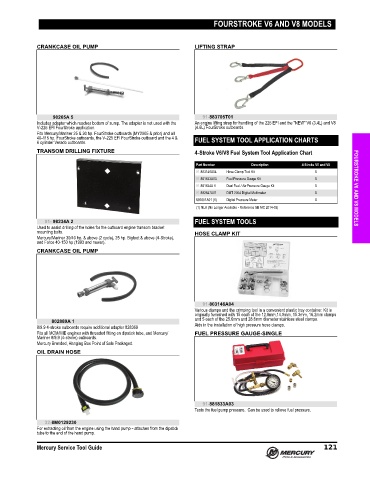

Page 128 - Mercury Service Tool Guide (2020) - 8M0163249

FOURSTROKE V6 AND V8 MODELS

CRANKCASE OIL PUMP LIFTING STRAP

90265A 5 91-883705T01
Includes adapter which reaches bottom of sump. The adapter is not used with the An engine lifting strap for handling of the 225 EFI and the "NEW" V6 (3.4L) and V8
V‑225 EFI FourStroke application. (4.6L) FourStroke outboards
Fits Mercury/Mariner 25 & 30 hp. FourStroke outboards (MY2005 & prior) and all
40‑115 hp. FourStroke outboards, the V‑225 EFI FourStroke outboard and the 4 & FUEL SYSTEM TOOL APPLICATION CHARTS
6 cylinder Verado outboards.
TRANSOM DRILLING FIXTURE 4‑Stroke V6/V8 Fuel System Tool Application Chart

Part Number Description 4-Stroke V6 and V8
91-803146A04 Hose Clamp Tool Kit X
91-881833A03 Fuel Pressure Gauge Kit X
91-881834A 1 Dual Fuel / Air Pressure Gauge Kit X FOURSTROKE V6 AND V8 MODELS
91-892647A01 DMT 2004 Digital Multimeter X
892651A01 (1) Digital Pressure Meter X
(1) NLA (No Longer Available - Reference SB MC 2014-03)

91- 98234A 2 FUEL SYSTEM TOOLS
Used to assist drilling of the holes for the outboard engine transom bracket
mounting bolts. HOSE CLAMP KIT
Mercury/Mariner 30/40 hp. & above (2 cycle), 25 hp. Bigfoot & above (4‑Stroke),
and Force 40‑150 hp (1993 and newer).
CRANKCASE OIL PUMP

91-803146A04
Various clamps and the crimping tool in a convenient plastic tray container. Kit is
originally furnished with 15 each of the 12.8mm,14.0mm, 15.3mm, 16.2mm clamps
802889A 1 and 5 each of the 25.6mm and 28.6mm diameter stainless steel clamps.
8/9.9 4‑stroke outboards require additional adapter 828369 Aids in the installation of high pressure hose clamps.
Fits all MCM/MIE engines with threaded fitting on dipstick tube, and Mercury/ FUEL PRESSURE GAUGE-SINGLE
Mariner 8/9.9 (4‑stroke) outboards.
Mercury Branded, Hanging Box Point of Sale Packaged.
OIL DRAIN HOSE

91-881833A03
Tests the fuel pump pressure. Can be used to relieve fuel pressure.

32-8M0129230
For extracting oil from the engine using the hand pump ‑ attaches from the dipstick
tube to the end of the hand pump.
