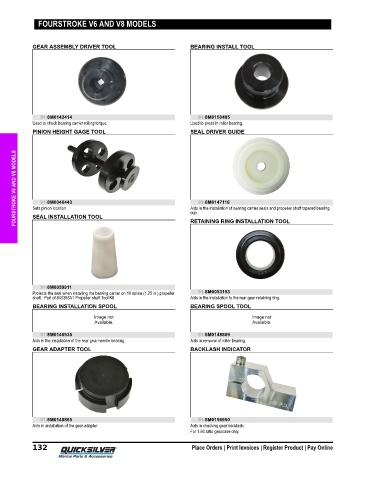

FOURSTROKE V6 AND V8 MODELS

GEAR ASSEMBLY DRIVER TOOL BEARING INSTALL TOOL

91-8M0142414 91-8M0150485
Used to check bearing carrier rolling torque. Used to press in roller bearing.
PINION HEIGHT GAGE TOOL SEAL DRIVER GUIDE

FOURSTROKE V6 AND V8 MODELS Sets pinion location Aids in the installation of bearing carrier seals and propeller shaft tapered bearing

91-8M0046443
91-8M0147116
cup.
SEAL INSTALLATION TOOL
RETAINING RING INSTALLATION TOOL

91-8M0059911
Protects the seal when installing the bearing carrier on 10 spline (1.25 in ) propeller 91-8M0053153
shaft. Part of 840393A1 Propeller shaft Tool Kit. Aids in the installation fo the rear gear retaining ring.
BEARING INSTALLATION SPOOL BEARING SPOOL TOOL

91-8M0146935 91-8M0148869
Aids in the installation of the rear gear needle bearing. Aids in removal of roller bearing.
GEAR ADAPTER TOOL BACKLASH INDICATOR

91-8M0148865 91-8M0156950
Aids in installation of the gear adapter. Aids in checking gear backlash.
For 1.60 ratio gearcase only.
