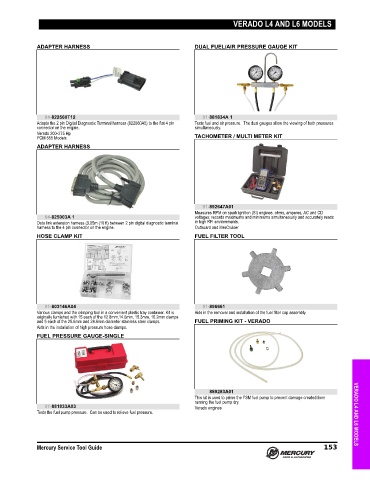

Page 160 - Mercury Service Tool Guide (2020) - 8M0163249

VERADO L4 AND L6 MODELS

ADAPTER HARNESS DUAL FUEL/AIR PRESSURE GAUGE KIT

84-822560T12 91-881834A 1
Adapts the 2 pin Digital Diagnostic Terminal harness (822560A5) to the flat 4 pin Tests fuel and air pressure. The dual gauges allow the viewing of both pressures
connector on the engine. simultaneously.
Verado 200‑275 Hp
PCM 555 Models TACHOMETER / MULTI METER KIT
ADAPTER HARNESS

91-892647A01
Measures RPM on spark ignition (SI) engines. ohms, amperes, AC and CD
84-825003A 1 voltages; records maximums and minimums simultaneously and accurately reads
Data link extension harness (3.05m (10 ft) between 2 pin digital diagnostic terminal in high RFI environments.
harness to the 4 pin connector on the engine. Outboard and MerCruiser
HOSE CLAMP KIT FUEL FILTER TOOL

91-803146A04 91-896661
Various clamps and the crimping tool in a convenient plastic tray container. Kit is Aids in the removal and installation of the fuel filter cap assembly.
originally furnished with 15 each of the 12.8mm,14.0mm, 15.3mm, 16.2mm clamps
and 5 each of the 25.6mm and 28.6mm diameter stainless steel clamps. FUEL PRIMING KIT - VERADO
Aids in the installation of high pressure hose clamps.
FUEL PRESSURE GAUGE-SINGLE

889283A01
This kit is used to prime the FSM fuel pump to prevent damage created from
running the fuel pump dry.
91-881833A03 Verado engines
Tests the fuel pump pressure. Can be used to relieve fuel pressure. VERADO L4 AND L6 MODELS
