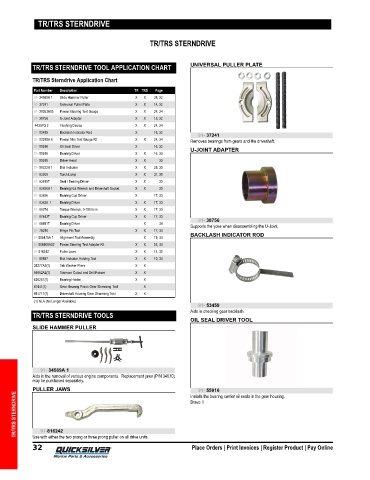

TR/TRS STERNDRIVE

TR/TRS STERNDRIVE

TR/TRS STERNDRIVE TOOL APPLICATION CHART UNIVERSAL PULLER PLATE

TR/TRS Sterndrive Application Chart
Part Number Description TR TRS Page
91- 34569A 1 Slide Hammer Puller X X 28, 32
91- 37241 Universal Puller Plate X X 14, 32
91- 38053A05 Power Steering Test Gauge X X 24, 34
91- 38756 U-Joint Adapter X X 15, 32
44357Q 2 Flushing Device X X 24, 34
91- 53459 Backlash Indicator Rod X 16, 32
91- 37241
91- 52915A 6 Power Trim Test Gauge Kit X X 24, 34 Removes bearings from gears and the driveshaft.
91- 55916 Oil Seal Driver X 16, 32
U-JOINT ADAPTER
91- 55918 Bearing Driver X X 16, 33
91- 55919 Driver Head X X 33
91- 58222A 1 Dial Indicator X X 28, 33
91- 63209 Torch Lamp X X 31, 35
91- 63619T Seal / Bearing Driver X X 33
91- 63620A 1 Bearing Nut Wrench and Driveshaft Socket X X 33
91- 63626 Bearing Cup Driver X 17, 33
91- 63638 1 Bearing Driver X X 17, 33
91- 66274 Torque Wrench, 0-150 lb-in X X 17, 33
91- 67443T Bearing Cup Driver X X 17, 33
91- 38756
91- 68891T Bearing Driver X 34
Supports the yoke when disassembling the U‑Joint.
91- 78310 Hinge Pin Tool X X 17, 34
91-805475A 1 Alignment Tool Assembly X 19, 34 BACKLASH INDICATOR ROD
91-806908A02 Power Steering Test Adapter Kit X X 24, 34
91-816242 Puller Jaws X X 14, 32
91- 89897 Dial Indicator Holding Tool X X 10, 34
38277A2(1) Tab Washer Pliers X X
55852A2(1) Transom Cutout and Drill Fixture X X
63625T(1) Bearing Holder X X
67441(1) Gear Housing Pinion Gear Shimming Tool X
98171T(1) Driveshaft Housing Gear Shimming Tool X X
(1) NLA (No Longer Available)
91- 53459
Aids in checking gear backlash.
TR/TRS STERNDRIVE TOOLS
OIL SEAL DRIVER TOOL
SLIDE HAMMER PULLER

91- 34569A 1
Aids in the removal of various engine components. Replacement jaws (P/N 34570)
may be purchased separately.
PULLER JAWS Installs the bearing carrier oil seals in the gear housing.
91- 55916
TR/TRS STERNDRIVE Bravo II

Use with either the two prong or three prong puller on all drive units.
