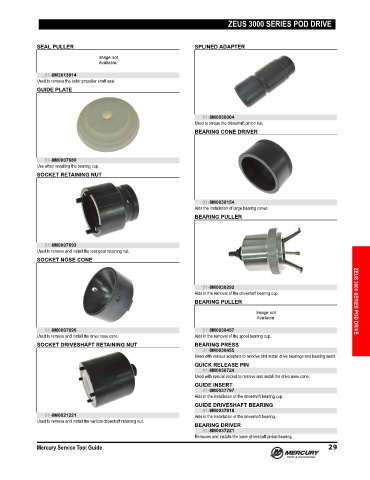

ZEUS 3000 SERIES POD DRIVE

SEAL PULLER SPLINED ADAPTER

91-8M2013914
Used to remove the outer propeller shaft seal.
GUIDE PLATE

91-8M0030004
Used to torque the driveshaft pinion nut.
BEARING CONE DRIVER

91-8M0007680
Use when installing the bearing cup.
SOCKET RETAINING NUT

91-8M0030154
Aids the installation of large bearing cones.
BEARING PULLER

91-8M0007693
Used to remove and install the rear gear retaining nut.
SOCKET NOSE CONE

91-8M0030292
Aids in the removal of the driveshaft bearing cup.
BEARING PULLER ZEUS 3000 SERIES POD DRIVE

91-8M0007695 91-8M0030457
Used to remove and install the drive nose cone. Aids in the removal of the spool bearing cup.
SOCKET DRIVESHAFT RETAINING NUT BEARING PRESS
91-8M0030455
Used with various adapters to remove and install drive bearings and bearing seats.
QUICK RELEASE PIN
91-8M0030724
Used with special socket to remove and install the drive nose cone.
GUIDE INSERT
91-8M0037797
Aids in the installation of the driveshaft bearing cup.
GUIDE DRIVESHAFT BEARING
91-8M0037818
91-8M0021221 Aids in the installation of the driveshaft bearing.
Used to remove and install the vertical driveshaft retaining nut.
BEARING DRIVER
91-8M0037221
Removes and installs the lower driveshaft pinion bearing.
Mercury Service Tool Guide 29
