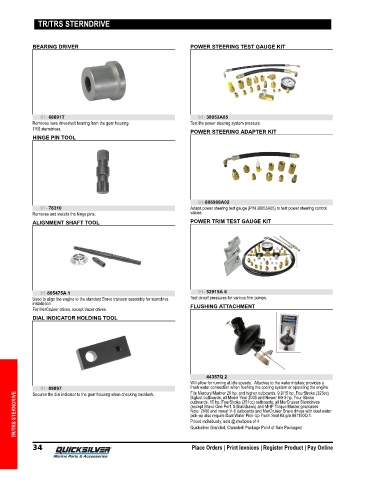

TR/TRS STERNDRIVE

BEARING DRIVER POWER STEERING TEST GAUGE KIT

91- 68891T 91- 38053A05
Removes lowe driveshaft bearing from the gear housing. Test the power steering system pressure.
TRS sterndrives.
POWER STEERING ADAPTER KIT
HINGE PIN TOOL

91-806908A02
91- 78310 Adaps power steering test gauge (P/N 38053A05) to test power steering control
Removes and installs the hinge pins. values.
ALIGNMENT SHAFT TOOL POWER TRIM TEST GAUGE KIT

91-805475A 1 91- 52915A 6
Used to align the engine to the standard Bravo transom assembly for sterndrive Test circuit pressures for various trim pumps.
installation. FLUSHING ATTACHMENT
For MerCruiser drives, except Vazer drives.
DIAL INDICATOR HOLDING TOOL

44357Q 2
Will allow for running at idle speeds. Attaches to the water intakes; provides a
91- 89897 fresh water connection when flushing the cooling system or operating the engine.
Fits Mercury/Mariner 20 hp. and higher outboards, 9.9/15 hp. FourStroke (323cc)
TR/TRS STERNDRIVE outboards, 15 hp. FourStroke (351cc) outboards, all MerCruiser Sterndrives
Secures the dial indicator to the gear housing when checking backlash.
Bigfoot outboards, all Model Year 2005 and Newer 8/9.9 hp. Four Stroke
(except Bravo One Perf. & Blackhawk) and MHP Torque Master gearcases.
Note: 2000 and newer V‑6 outboards and MerCruiser Bravo drives with dual water
pick‑up also require Dual Water Pick‑Up Flush Seal Kit p/n 881150Q 1.
Priced individually, sold @ multiples of 4
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
