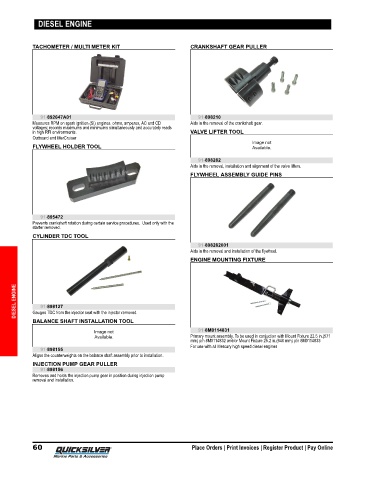

Page 67 - Mercury Service Tool Guide (2020) - 8M0163249

DIESEL ENGINE

TACHOMETER / MULTI METER KIT CRANKSHAFT GEAR PULLER

91-892647A01 91-898210
Measures RPM on spark ignition (SI) engines. ohms, amperes, AC and CD Aids in the removal of the crankshaft gear.
voltages; records maximums and minimums simultaneously and accurately reads
in high RFI environments. VALVE LIFTER TOOL
Outboard and MerCruiser
FLYWHEEL HOLDER TOOL
91-898282
Aids in the removal, installation and alignment of the valve lifters.
FLYWHEEL ASSEMBLY GUIDE PINS

91-895472
Prevents crankshaft rotation during certain service procedures. Used only with the
starter removed.
CYLINDER TDC TOOL
91-898282001
Aids in the removal and installation of the flywheel.
ENGINE MOUNTING FIXTURE

DIESEL ENGINE 91-898127

Gauges TDC from the injector seat with the injector removed.
BALANCE SHAFT INSTALLATION TOOL
91-8M0114831
Primary mount assembly. To be used in conjuction with Mount Fixture 22.5 in.(571
mm) p/n 8M0114832 and/or Mount Fixture 25.2 in.(640 mm) p/n 8M0114833
For use with all Mercury high speed diesel engines
91-898155
Aligns the counterweights on the balance shaft assembly prior to installation.
INJECTION PUMP GEAR PULLER
91-898156
Removes and holds the injection pump gear in position during injection pump
removal and installation.
