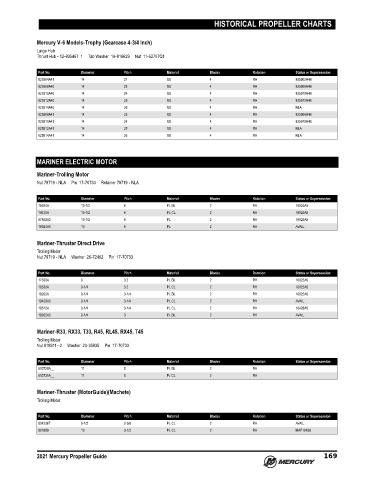

HISTORICAL PROPELLER CHARTS

Mercury V‑6 Models‑Trophy (Gearcase 4‑3/4 Inch)
Large Hub
Thrust Hub ‑ 12‑835467 1 Tab Washer 14‑816629 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
825904A41 14 21 SS 4 RH 825902A46
825908A40 14 23 SS 4 RH 825906A46
825910A40 14 24 SS 4 RH 825910A46
825912A40 14 25 SS 4 RH 825912A46
825914A40 14 26 SS 4 RH NLA
825908A41 14 23 SS 4 RH 825906A46
825910A41 14 24 SS 4 RH 825910A46
825912A41 14 25 SS 4 RH NLA
825914A41 14 26 SS 4 RH NLA

MARINER ELECTRIC MOTOR

Mariner‑Trolling Motor
Nut 79719 ‑ NLA Pin 17‑70733 Retainer 79719 ‑ NLA

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
18024A__ 10-1/2 6 PL BL 2 RH 18024A5
18430A__ 10-1/2 6 PL CL 2 RH 18024A5
87842A2 10-1/2 6 PL 2 RH 18024A5
18024A5 10 6 PL 2 RH AVAIL.

Mariner‑Thruster Direct Drive
Trolling Motor
Nut 79719 ‑ NLA Washer 26‑72462 Pin 17‑70733

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
17530A__ 9 3.2 PL BL 2 RH 18022A5
18530A__ 9-1/4 3.2 PL CL 2 RH 18022A5
18022A__ 9-1/4 3-1/4 PL BL 2 RH 18022A5
18428A5 9-1/4 3-1/4 PL CL 2 RH AVAIL.
18512A__ 9-1/4 3-1/4 PL CL 2 RH 18428A5
18022A5 9-1/4 3 PL BL 2 RH AVAIL.

Mariner‑R33, RX33, T33, R45, RL45, RX45, T45
Trolling Motor
Nut 818911‑‑2 Washer 23‑35935 Pin 17‑70733

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
813728A__ 11 5 PL BL 2 RH
813730A__ 11 5 PL CL 2 RH

Mariner‑Thruster (MotorGuide)(Machete)
Trolling Motor

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
824236T 9-1/2 2-5/8 PL CL 2 RH AVAIL.
801889 10 3-1/2 PL CL 2 RH MAF12406

2021 Mercury Propeller Guide 169
