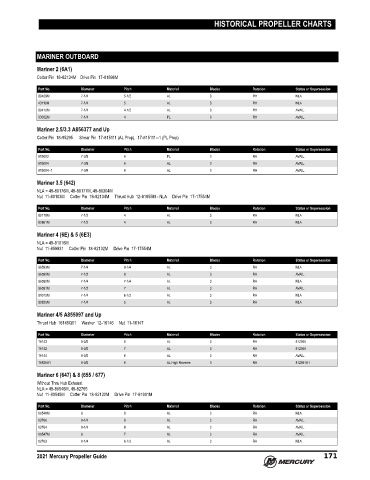

HISTORICAL PROPELLER CHARTS

MARINER OUTBOARD

Mariner 2 (6A1)
Cotter Pin 18‑82134M Drive Pin 17‑81896M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
80409M 7-1/4 5-1/2 AL 3 RH NLA
43110M 7-1/4 5 AL 3 RH NLA
80410M 7-1/4 4-1/2 AL 3 RH AVAIL.
93032M 7-1/4 4 PL 3 RH AVAIL.
Mariner 2.5/3.3 A856377 and Up
Cotter Pin 18‑95295 Shear Pin 17‑815111 (AL Prop), 17‑815111‑‑1 (PL Prop)
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
815083 7-3/8 6 PL 3 RH AVAIL.
815084 7-3/8 6 AL 3 RH AVAIL.
815084--1 7-3/8 6 AL 3 RH AVAIL.
Mariner 3.5 (642)
NLA = 48‑80176M, 48‑80177M, 48‑80304M
Nut 11‑80103M Cotter Pin 18‑82134M Thrust Hub 12‑81855M ‑ NLA Drive Pin 17‑17554M
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
80178M 7-1/2 4 AL 3 RH NLA
82861M 7-1/2 4 AL 3 RH NLA

Mariner 4 (6E) & 5 (6E3)
NLA = 48‑81016M
Nut 11‑859931 Cotter Pin 18‑82132M Drive Pin 17‑17554M
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
96593M 7-1/4 8-1/4 AL 3 RH NLA
96590M 7-1/2 8 AL 3 RH AVAIL.
96592M 7-1/4 7-1/4 AL 3 RH NLA
96591M 7-1/2 7 AL 3 RH AVAIL.
81015M 7-1/4 6-1/2 AL 3 RH NLA
82825M 7-1/4 5 AL 3 RH NLA
Mariner 4/5 A855097 and Up
Thrust Hub 16145Q01 Washer 12‑16146 Nut 11‑16147
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
16143 8-3/8 8 AL 3 RH 812950
16142 8-3/8 7 AL 3 RH 812949
16144 8-3/8 6 AL 3 RH AVAIL.
16836A1 8-3/8 6 AL High Reverse 3 RH 812951A1

Mariner 6 (647) & 8 (655 / 677)
Without Thru Hub Exhaust
NLA = 48‑80546M, 48‑82765
Nut 11‑80545M Cotter Pin 18‑82132M Drive Pin 17‑81901M
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
80548M 9 9 AL 3 RH NLA
82766 8-1/4 9 AL 3 RH AVAIL.
82764 8-1/4 8 AL 3 RH AVAIL.
80547M 9 7 AL 3 RH AVAIL.
82763 8-1/4 6-1/2 AL 3 RH NLA

2021 Mercury Propeller Guide 171
