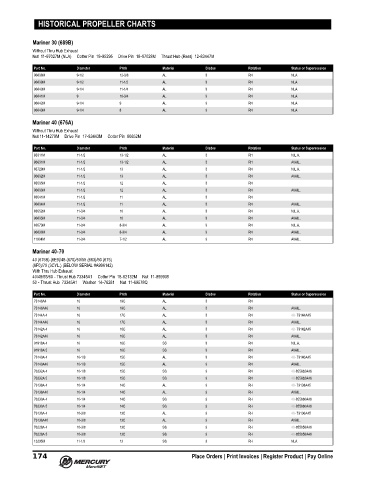

HISTORICAL PROPELLER CHARTS

Mariner 30 (689B)
Without Thru Hub Exhaust
Nut 11‑97027M (NLA) Cotter Pin 18‑95295 Drive Pin 18‑97028M Thrust Hub (Rear) 12‑83447M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
96638M 9-1/2 12-3/8 AL 3 RH NLA
96639M 9-1/2 11-1/2 AL 3 RH NLA
96640M 9-1/4 11-1/4 AL 3 RH NLA
96641M 9 10-3/4 AL 3 RH NLA
96642M 9-1/4 9 AL 3 RH NLA
96643M 9-1/4 8 AL 3 RH NLA
Mariner 40 (676A)
Without Thru Hub Exhaust
Nut 11‑14279M Drive Pin 17‑83443M Cotter Pin 80652M
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
83311M 11-1/2 13-1/2 AL 3 RH N.L.A.
96631M 11-1/2 13-1/2 AL 3 RH AVAIL.
83729M 11-1/2 13 AL 3 RH N.L.A.
96632M 11-1/2 13 AL 3 RH AVAIL.
83535M 11-1/2 12 AL 3 RH
96633M 11-1/2 12 AL 3 RH AVAIL.
83541M 11-1/2 11 AL 3 RH
96634M 11-1/2 11 AL 3 RH AVAIL.
83552M 11-3/4 10 AL 3 RH N.L.A.
96635M 11-3/4 10 AL 3 RH AVAIL.
83573M 11-3/4 8-3/4 AL 3 RH N.L.A.
96636M 11-3/4 8-3/4 AL 3 RH AVAIL.
11904M 11-3/4 7-1/2 AL 3 RH AVAIL.
Mariner 40‑70
40 (676B) (6E9)/48 (670)/50/55 (663)/60 (675)
(6F0)/70 (3CYL.) (BELOW SERIAL #A996142)
With Thru Hub Exhaust
40/48/55/60 ‑ Thrust Hub 73345A1 Cotter Pin 18‑82132M Nut 11‑859935
50 ‑ Thrust Hub 73345A1 Washer 14‑76281 Nut 11‑69578Q
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
73146A4 10 19C AL 3 RH
73146A40 10 19C AL 3 RH AVAIL.
73144A 4 10 17C AL 3 RH 48- 73144A45
73144A40 10 17C AL 3 RH AVAIL.
73142A 4 10 16C AL 3 RH 48- 73142A45
73142A40 10 16C AL 3 RH AVAIL.
91818A 4 10 16C SS 3 RH N.L.A.
91818A 5 10 16C SS 3 RH AVAIL.
73140A 4 10-1/8 15C AL 3 RH 48- 73140A45
73140A40 10-1/8 15C AL 3 RH AVAIL.
76232A 4 10-1/8 15C SS 3 RH 48-855862A46
76232A 5 10-1/8 15C SS 3 RH 48-855862A46
73138A 4 10-1/4 14C AL 3 RH 48- 73138A45
73138A40 10-1/4 14C AL 3 RH AVAIL.
76230A 4 10-1/4 14C SS 3 RH 48-855860A46
76230A 5 10-1/4 14C SS 3 RH 48-855860A46
73136A 4 10-3/8 13C AL 3 RH 48- 73136A45
73136A40 10-3/8 13C AL 3 RH AVAIL.
76228A 4 10-3/8 13C SS 3 RH 48-855858A46
76228A 5 10-3/8 13C SS 3 RH 48-855858A46
13295M 11-1/2 13 SS 3 RH NLA
