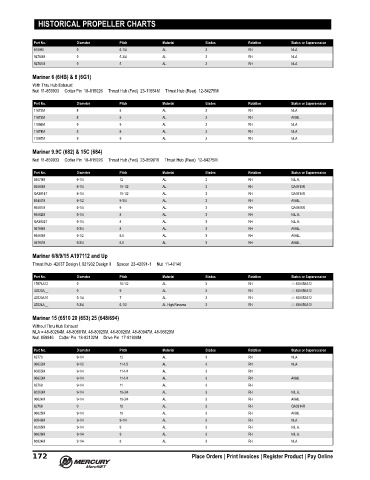

Page 179 - Mercury Propeller Guide (2021) - 8M0174460

HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
8109M 9 6-1/4 AL 3 RH NLA
94780M 9 5-3/4 AL 3 RH NLA
94781M 9 5 AL 3 RH NLA
Mariner 6 (6HB) & 8 (6G1)
With Thru Hub Exhaust
Nut 11‑859933 Cotter Pin 18‑815026 Thrust Hub (Fwd) 23‑11654M Thrust Hub (Rear) 12‑84275M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
11672M 8 8 AL 3 RH NLA
11673M 8 8 AL 3 RH AVAIL.
11896M 9 9 AL 3 RH NLA
11674M 8 8 AL 3 RH NLA
11897M 9 9 AL 3 RH NLA

Mariner 9.9C (682) & 15C (684)
Nut 11‑859933 Cotter Pin 18‑815026 Thrust Hub (Fwd) 23‑859916 Thrust Hub (Rear) 12‑84275M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
84079M 9-1/4 12 AL 3 RH N.L.A.
84080M 9-1/4 10-1/2 AL 3 RH QA3914R
QA3914T 9-1/4 10-1/2 AL 3 RH QA3914R
84407M 9-1/2 9-3/4 AL 3 RH AVAIL.
84081M 9-1/4 9 AL 3 RH QA3906R
84082M 9-1/4 8 AL 3 RH N.L.A.
QA3902T 9-1/4 8 AL 3 RH N.L.A.
94786M 9-3/4 8 AL 3 RH AVAIL.
84083M 9-1/2 6.5 AL 3 RH AVAIL.
94787M 9-3/4 6.5 AL 3 RH AVAIL.
Mariner 6/8/9/15 A197112 and Up
Thrust Hub 42037 Design I, 821932 Design II Spacer 23‑42091‑1 Nut 11‑40140

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
17874A12 9 10-1/2 AL 3 RH 48-828158A12
42522A__ 9 9 AL 3 RH 48-828156A12
42520A10 9-1/4 7 AL 3 RH 48-828152A12
42524A__ 9-3/4 6-1/2 AL High Reverse 3 RH 48-828150A12

Mariner 15 (6510 20 (653) 25 (648/694)
Without Thru Hub Exhaust
NLA = 48‑80264M, 48‑80681M, 48‑80925M, 48‑80926M, 48‑80947M, 48‑96629M
Nut 859946 Cotter Pin 18‑82132M Drive Pin 17‑81900M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
82770 9-1/4 12 AL 3 RH NLA
96622M 9-1/2 11-1/2 AL 3 RH NLA
80955M 9-1/4 11-1/4 AL 3 RH
96623M 9-1/4 11-1/4 AL 3 RH AVAIL
82769 9-1/4 11 AL 3 RH
80263M 9-1/4 10-3/4 AL 3 RH N.L.A.
96624M 9-1/4 10-3/4 AL 3 RH AVAIL
82768 9 10 AL 3 RH QA3914R
96625M 9-1/4 10 AL 3 RH AVAIL
80546M 9-1/4 9-1/4 AL 3 RH NLA
80265M 9-1/4 9 AL 3 RH N.L.A.
96626M 9-1/4 9 AL 3 RH N.L.A.
80924M 9-1/4 8 AL 3 RH NLA
