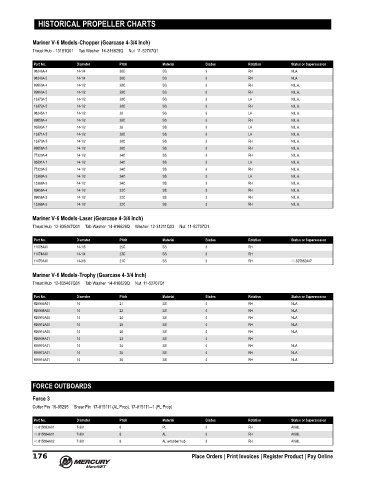

HISTORICAL PROPELLER CHARTS

Mariner V‑6 Models‑Chopper (Gearcase 4‑3/4 Inch)
Thrust Hub ‑ 13191Q01 Tab Washer 14‑816629Q Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
98246A 4 14-1/4 30C SS 3 RH NLA
98246A 5 14-1/4 30C SS 3 RH NLA
89860A 4 14-1/2 28C SS 3 RH N.L.A.
89860A 5 14-1/2 28C SS 3 RH N.L.A.
13373A 5 14-1/2 28C SS 3 LH N.L.A.
13372A 5 14-1/2 28C SS 3 RH N.L.A.
98245A 1 14-1/2 28 SS 3 LH N.L.A.
89858A 4 14-1/2 26C SS 3 RH N.L.A.
93593A 1 14-1/2 26 SS 3 LH N.L.A.
13371A 5 14-1/2 26C SS 3 LH N.L.A.
13370A 5 14-1/2 26C SS 3 RH N.L.A.
89858A 5 14-1/2 26C SS 3 RH N.L.A.
77320A 4 14-1/2 24C SS 3 RH N.L.A.
93591A 1 14-1/2 24C SS 3 LH N.L.A.
77320A 5 14-1/2 24C SS 3 RH N.L.A.
13369A 5 14-1/2 24C SS 3 LH N.L.A.
13368A 5 14-1/2 24C SS 3 RH N.L.A.
89856A 4 14-1/2 22C SS 3 RH N.L.A.
89856A 5 14-1/2 22C SS 3 RH N.L.A.
13366A 5 14-1/2 22C SS 3 RH N.L.A.
Mariner V‑6 Models‑Laser (Gearcase 4‑3/4 Inch)
Thrust Hub 12‑835467Q01 Tab Washer 14‑816629Q Washer 12‑31211Q03 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
11078A40 14-1/8 25C SS 3 RH
11074A40 14-1/4 23C SS 3 RH
11070A40 14-3/8 21C SS 3 RH 48-825862A47

Mariner V‑6 Models‑Trophy (Gearcase 4‑3/4 Inch)
Thrust Hub 12‑835467Q01 Tab Washer 14‑816629Q Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
825904A41 14 21 SS 4 RH NLA
825908A40 14 23 SS 4 RH NLA
825910A40 14 24 SS 4 RH NLA
825912A40 14 25 SS 4 RH NLA
825914A40 14 26 SS 4 RH NLA
825908A41 14 23 SS 4 RH
825910A41 14 24 SS 4 RH NLA
825912A41 14 25 SS 4 RH NLA
825914A41 14 26 SS 4 RH NLA

FORCE OUTBOARDS

Force 3
Cotter Pin 18‑95295 Shear Pin 17‑815111 (AL Prop), 17‑815111‑‑1 (PL Prop)

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
48-815083A01 7-3/8 6 PL 3 RH AVAIL.
48-815084A01 7-3/8 6 AL 3 RH AVAIL.
48-815084A02 7-3/8 6 AL w/rubber hub 3 RH AVAIL.
