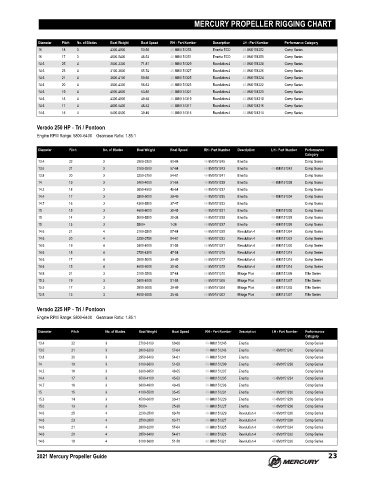

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance Category
16 18 3 4300-4900 50-56 48-8M0151253 Enertia ECO 48-8M0151252 Comp Series
16 17 3 4600-5400 46-53 48-8M0151251 Enertia ECO 48-8M0151250 Comp Series
14.6 25 4 2800-3300 71-81 48-8M0151329 Revolution 4 48-8M0151328 Comp Series
14.6 23 4 3100-3600 65-74 48-8M0151327 Revolution 4 48-8M0151326 Comp Series
14.6 21 4 3600-4100 59-66 48-8M0151325 Revolution 4 48-8M0151324 Comp Series
14.6 20 4 3800-4300 56-63 48-8M0151323 Revolution 4 48-8M0151322 Comp Series
14.6 19 4 4000-4600 53-60 48-8M0151321 Revolution 4 48-8M0151320 Comp Series
14.6 18 4 4300-4900 49-56 48-8M0151319 Revolution 4 48-8M0151318 Comp Series
14.6 17 4 4600-5400 46-53 48-8M0151317 Revolution 4 48-8M0151316 Comp Series
14.6 15 4 5400-6500 39-46 48-8M0151315 Revolution 4 48-8M0151314 Comp Series

Verado 250 HP ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.4 22 3 2900-3300 60-68 48-8M0151245 Enertia Comp Series
13.6 21 3 3100-3500 57-64 48-8M0151243 Enertia 48-8M0151242 Comp Series
13.8 20 3 3250-3750 54-61 48-8M0151241 Enertia Comp Series
14 19 3 3400-4000 51-58 48-8M0151239 Enertia 48-8M0151238 Comp Series
14.2 18 3 3650-4500 45-54 48-8M0151237 Enertia Comp Series
14.4 17 3 3900-5000 39-49 48-8M0151235 Enertia 48-8M0151234 Comp Series
14.7 16 3 4300-5500 37-47 48-8M0151233 Enertia Comp Series
15 15 3 4600-6000 35-45 48-8M0151231 Enertia 48-8M0151230 Comp Series
15 14 3 5000-5500 25-38 48-8M0151229 Enertia 48-8M0151228 Comp Series
15 13 3 5500+ 1-28 48-8M0151227 Enertia 48-8M0151226 Comp Series
14.6 21 4 3100-3500 57-64 48-8M0151325 Revolution 4 48-8M0151324 Comp Series
14.6 20 4 3250-3750 54-61 48-8M0151323 Revolution 4 48-8M0151322 Comp Series
14.6 19 4 3400-4000 51-58 48-8M0151321 Revolution 4 48-8M0151320 Comp Series
14.6 18 4 3750-4300 47-54 48-8M0151319 Revolution 4 48-8M0151318 Comp Series
14.6 17 4 3900-5000 39-49 48-8M0151317 Revolution 4 48-8M0151316 Comp Series
14.6 15 4 4600-6000 35-45 48-8M0151315 Revolution 4 48-8M0151314 Comp Series
14.8 21 3 3100-3500 57-64 48-8M0151310 Mirage Plus 48-8M0151309 Elite Series
15.3 19 3 3400-4000 51-58 48-8M0151308 Mirage Plus 48-8M0151307 Elite Series
15.5 17 3 3900-5000 39-49 48-8M0151304 Mirage Plus 48-8M0151303 Elite Series
15.8 15 3 4600-6000 35-45 48-8M0151302 Mirage Plus 48-8M0151301 Elite Series

Verado 225 HP ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.4 22 3 2700-3100 60-68 48-8M0151245 Enertia Comp Series
13.6 21 3 2800-3200 57-64 48-8M0151243 Enertia 48-8M0151242 Comp Series
13.8 20 3 2950-3400 54-61 48-8M0151241 Enertia Comp Series
14 19 3 3100-3600 51-58 48-8M0151239 Enertia 48-8M0151238 Comp Series
14.2 18 3 3300-3850 48-55 48-8M0151237 Enertia Comp Series
14.4 17 3 3500-4100 45-52 48-8M0151235 Enertia 48-8M0151234 Comp Series
14.7 16 3 3800-4800 40-49 48-8M0151233 Enertia Comp Series
15 15 3 4100-5500 35-45 48-8M0151231 Enertia 48-8M0151230 Comp Series
15.3 14 3 4500-6000 30-41 48-8M0151229 Enertia 48-8M0151228 Comp Series
15.6 13 3 5000+ 25-38 48-8M0151227 Enertia 48-8M0151226 Comp Series
14.6 25 4 2200-2500 69-78 48-8M0151329 Revolution 4 48-8M0151328 Comp Series
14.6 23 4 2500-2800 63-71 48-8M0151327 Revolution 4 48-8M0151326 Comp Series
14.6 21 4 2800-3200 57-64 48-8M0151325 Revolution 4 48-8M0151324 Comp Series
14.6 20 4 2950-3400 54-61 48-8M0151323 Revolution 4 48-8M0151322 Comp Series
14.6 19 4 3100-3600 51-58 48-8M0151321 Revolution 4 48-8M0151320 Comp Series

2021 Mercury Propeller Guide 23
