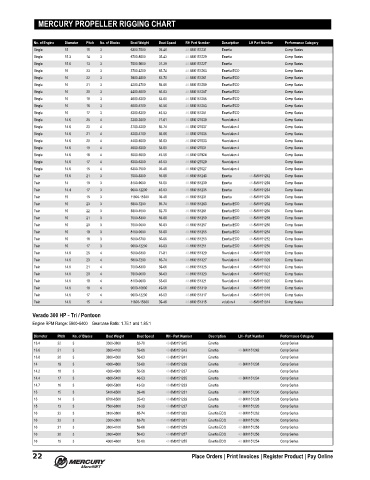

MERCURY PROPELLER RIGGING CHART

No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performance Category
Single 15 15 3 6300-7500 39-46 48-8M0151231 Enertia Comp Series
Single 15.3 14 3 6700-8500 35-43 48-8M0151229 Enertia Comp Series
Single 15.6 13 3 7500-9800 31-39 48-8M0151227 Enertia Comp Series
Single 16 23 3 3700-4200 65-74 48-8M0151263 Enertia ECO Comp Series
Single 16 22 3 3900-4500 62-70 48-8M0151261 Enertia ECO Comp Series
Single 16 21 3 4200-4700 59-66 48-8M0151259 Enertia ECO Comp Series
Single 16 20 3 4400-5000 56-63 48-8M0151257 Enertia ECO Comp Series
Single 16 19 3 4600-5300 53-60 48-8M0151255 Enertia ECO Comp Series
Single 16 18 3 5000-5700 50-56 48-8M0151253 Enertia ECO Comp Series
Single 16 17 3 5300-6300 46-53 48-8M0151251 Enertia ECO Comp Series
Single 14.6 25 4 3300-3800 71-81 48-8M0127039 Revolution 4 Comp Series
Single 14.6 23 4 3700-4200 65-74 48-8M0127037 Revolution 4 Comp Series
Single 14.6 21 4 4200-4700 59-66 48-8M0127035 Revolution 4 Comp Series
Single 14.6 20 4 4400-5000 56-63 48-8M0127033 Revolution 4 Comp Series
Single 14.6 19 4 4600-5300 53-60 48-8M0127031 Revolution 4 Comp Series
Single 14.6 18 4 5000-5800 49-56 48-8M0137924 Revolution 4 Comp Series
Single 14.6 17 4 5300-6300 46-53 48-8M0127029 Revolution 4 Comp Series
Single 14.6 15 4 6300-7500 39-46 48-8M0127027 Revolution 4 Comp Series
Twin 13.6 21 3 7000-8300 59-66 48-8M0151243 Enertia 48-8M0151242 Comp Series
Twin 14 19 3 8100-9600 53-60 48-8M0151239 Enertia 48-8M0151238 Comp Series
Twin 14.4 17 3 9600-12200 46-53 48-8M0151235 Enertia 48-8M0151234 Comp Series
Twin 15 15 3 11600-15300 39-46 48-8M0151231 Enertia 48-8M0151230 Comp Series
Twin 16 23 3 5800-7200 65-74 48-8M0151263 Enertia ECO 48-8M0151262 Comp Series
Twin 16 22 3 3900-4500 62-70 48-8M0151261 Enertia ECO 48-8M0151260 Comp Series
Twin 16 21 3 7000-8300 59-66 48-8M0151259 Enertia ECO 48-8M0151258 Comp Series
Twin 16 20 3 7600-9000 56-63 48-8M0151257 Enertia ECO 48-8M0151256 Comp Series
Twin 16 19 3 8100-9600 53-60 48-8M0151255 Enertia ECO 48-8M0151254 Comp Series
Twin 16 18 3 5000-5700 50-56 48-8M0151253 Enertia ECO 48-8M0151252 Comp Series
Twin 16 17 3 9600-12200 46-53 48-8M0151251 Enertia ECO 48-8M0151250 Comp Series
Twin 14.6 25 4 5000-6300 71-81 48-8M0151329 Revolution 4 48-8M0151328 Comp Series
Twin 14.6 23 4 5800-7200 65-74 48-8M0151327 Revolution 4 48-8M0151326 Comp Series
Twin 14.6 21 4 7000-8300 59-66 48-8M0151325 Revolution 4 48-8M0151324 Comp Series
Twin 14.6 20 4 7600-9000 56-63 48-8M0151323 Revolution 4 48-8M0151322 Comp Series
Twin 14.6 19 4 8100-9600 53-60 48-8M0151321 Revolution 4 48-8M0151320 Comp Series
Twin 14.6 18 4 9000-10800 49-56 48-8M0151319 Revolution 4 48-8M0151318 Comp Series
Twin 14.6 17 4 9600-12200 46-53 48-8M0151317 Revolution 4 48-8M0151316 Comp Series
Twin 14.6 15 4 11600-15300 39-46 48-8M0151315 volution 4 48-8M0151314 Comp Series
Verado 300 HP ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.75:1 and 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance Category
13.4 22 3 3300-3800 62-70 48-8M0151245 Enertia Comp Series
13.6 21 3 3600-4100 59-66 48-8M0151243 Enertia 48-8M0151242 Comp Series
13.8 20 3 3800-4300 56-63 48-8M0151241 Enertia Comp Series
14 19 3 4000-4600 53-60 48-8M0151239 Enertia 48-8M0151238 Comp Series
14.2 18 3 4300-4900 50-56 48-8M0151237 Enertia Comp Series
14.4 17 3 4600-5400 46-53 48-8M0151235 Enertia 48-8M0151234 Comp Series
14.7 16 3 4900-5800 43-50 48-8M0151233 Enertia Comp Series
15 15 3 5400-6500 39-46 48-8M0151231 Enertia 48-8M0151230 Comp Series
15 14 3 6700-8500 35-43 48-8M0151229 Enertia 48-8M0151228 Comp Series
15 13 3 7500-9800 31-39 48-8M0151227 Enertia 48-8M0151226 Comp Series
16 23 3 3100-3600 65-74 48-8M0151263 Enertia ECO 48-8M0151262 Comp Series
16 22 3 3300-3800 62-70 48-8M0151261 Enertia ECO 48-8M0151260 Comp Series
16 21 3 3600-4100 59-66 48-8M0151259 Enertia ECO 48-8M0151258 Comp Series
16 20 3 3800-4300 56-63 48-8M0151257 Enertia ECO 48-8M0151256 Comp Series
16 19 3 4000-4600 53-60 48-8M0151255 Enertia ECO 48-8M0151254 Comp Series
