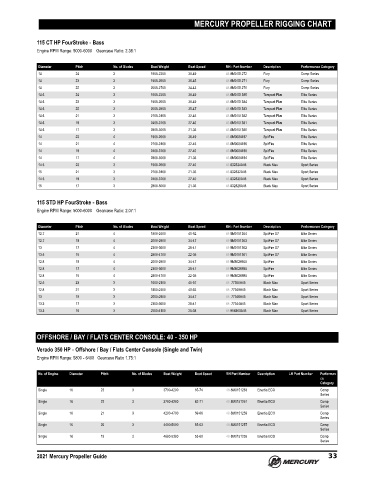

MERCURY PROPELLER RIGGING CHART
115 CT HP FourStroke ‑ Bass
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14 24 3 1600-2300 38-49 48-8M0151272 Fury Comp Series
14 23 3 1900-2600 36-45 48-8M0151271 Fury Comp Series
14 22 3 2000-2700 34-43 48-8M0151270 Fury Comp Series
14.6 24 3 1600-2300 38-49 48-8M0151385 Tempest Plus Elite Series
14.6 23 3 1900-2600 38-49 48-8M0151384 Tempest Plus Elite Series
14.6 22 3 2000-2800 35-47 48-8M0151383 Tempest Plus Elite Series
14.6 21 3 2100-3100 32-45 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 2400-3700 27-40 48-8M0151381 Tempest Plus Elite Series
14.6 17 3 2800-5000 21-35 48-8M0151380 Tempest Plus Elite Series
14 23 4 1900-2600 38-49 48-8M0084497 SpitFire Elite Series
14 21 4 2100-3100 32-45 48-8M0084496 SpitFire Elite Series
14 19 4 2400-3700 27-40 48-8M0084495 SpitFire Elite Series
14 17 4 2800-5000 21-35 48-8M0084494 SpitFire Elite Series
14.5 23 3 1900-2600 27-40 48-832834A45 Black Max Sport Series
15 21 3 2100-3100 21-35 48-832832A45 Black Max Sport Series
14.5 19 3 2400-3700 27-40 48-832830A45 Black Max Sport Series
15 17 3 2800-5000 21-35 48-832828A45 Black Max Sport Series
115 STD HP FourStroke ‑ Bass
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1800-2400 40-52 48-8M0151364 SpitFire X7 Elite Series
12.7 19 4 2000-2900 34-47 48-8M0151363 SpitFire X7 Elite Series
13 17 4 2300-3600 28-41 48-8M0151362 SpitFire X7 Elite Series
13.5 15 4 2800-4700 22-35 48-8M0151361 SpitFire X7 Elite Series
12.8 19 4 2000-2900 34-47 48-8M8026600 SpitFire Elite Series
12.8 17 4 2300-3600 28-41 48-8M8026590 SpitFire Elite Series
12.8 15 4 2800-4700 22-35 48-8M8026580 SpitFire Elite Series
12.5 23 3 1600-2100 45-57 48- 77350A45 Black Max Sport Series
12.8 21 3 1800-2400 40-52 48- 77348A45 Black Max Sport Series
13 19 3 2000-2900 34-47 48- 77346A45 Black Max Sport Series
13.3 17 3 2300-3600 28-41 48- 77344A45 Black Max Sport Series
13.3 16 3 2500-4100 25-38 48-854360A45 Black Max Sport Series
OFFSHORE / BAY / FLATS CENTER CONSOLE: 40 - 350 HP
Verado 350 HP ‑ Offshore / Bay / Flats Center Console (Single and Twin)
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.75:1
No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performan
ce
Category
Single 16 23 3 3700-4200 65-74 48-8M0151263 Enertia ECO Comp
Series
Single 16 22 3 3700-4200 62-71 48-8M0151261 Enertia ECO Comp
Series
Single 16 21 3 4200-4700 59-66 48-8M0151259 Enertia ECO Comp
Series
Single 16 20 3 4400-5000 55-63 48-8M0151257 Enertia ECO Comp
Series
Single 16 19 3 4600-5300 53-60 48-8M0151255 Enertia ECO Comp
Series
2021 Mercury Propeller Guide 33
