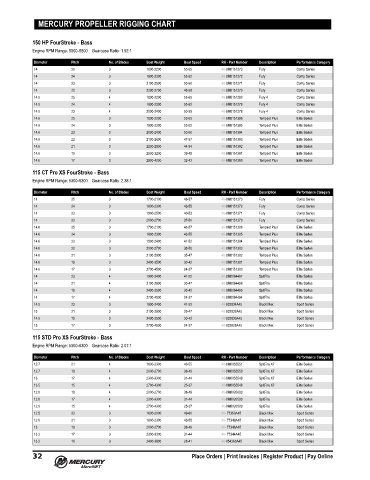

MERCURY PROPELLER RIGGING CHART
150 HP FourStroke ‑ Bass
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14 25 3 1800-2200 55-65 48-8M0151273 Fury Comp Series
14 24 3 1900-2300 53-62 48-8M0151272 Fury Comp Series
14 23 3 2100-2500 50-60 48-8M0151271 Fury Comp Series
14 22 3 2300-2700 48-58 48-8M0151270 Fury Comp Series
14.5 25 4 1800-2200 55-65 48-8M0151280 Fury 4 Comp Series
14.5 24 4 1900-2300 53-62 48-8M0151279 Fury 4 Comp Series
14.5 23 4 2000-2400 50-59 48-8M0151278 Fury 4 Comp Series
14.6 25 3 1800-2200 55-65 48-8M0151386 Tempest Plus Elite Series
14.6 24 3 1900-2300 53-62 48-8M0151385 Tempest Plus Elite Series
14.6 23 3 2000-2400 50-60 48-8M0151384 Tempest Plus Elite Series
14.6 22 3 2100-2600 47-57 48-8M0151383 Tempest Plus Elite Series
14.6 21 3 2200-2800 44-54 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 2500-3200 39-49 48-8M0151381 Tempest Plus Elite Series
14.6 17 3 2900-4000 32-43 48-8M0151380 Tempest Plus Elite Series
115 CT Pro XS FourStroke ‑ Bass
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.38:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14 25 3 1700-2100 46-57 48-8M0151273 Fury Comp Series
14 24 3 1800-2300 43-55 48-8M0151272 Fury Comp Series
14 23 3 1900-2500 40-53 48-8M0151271 Fury Comp Series
14 22 3 2000-2700 37-50 48-8M0151270 Fury Comp Series
14.6 25 3 1700-2100 46-57 48-8M0151386 Tempest Plus Elite Series
14.6 24 3 1800-2300 43-55 48-8M0151385 Tempest Plus Elite Series
14.6 23 3 1900-2400 41-52 48-8M0151384 Tempest Plus Elite Series
14.6 22 3 2000-2700 38-50 48-8M0151383 Tempest Plus Elite Series
14.6 21 3 2100-2900 35-47 48-8M0151382 Tempest Plus Elite Series
14.6 19 3 2400-3500 30-42 48-8M0151381 Tempest Plus Elite Series
14.6 17 3 2700-4500 24-37 48-8M0151380 Tempest Plus Elite Series
14 23 4 1900-2400 41-52 48-8M0084497 SpitFire Elite Series
14 21 4 2100-2900 35-47 48-8M0084496 SpitFire Elite Series
14 19 4 2400-3500 30-42 48-8M0084495 SpitFire Elite Series
14 17 4 2700-4500 24-37 48-8M0084494 SpitFire Elite Series
14.5 23 3 1900-2400 41-52 48-832834A45 Black Max Sport Series
15 21 3 2100-2900 35-47 48-832832A45 Black Max Sport Series
14.5 19 3 2400-3500 30-42 48-832830A45 Black Max Sport Series
15 17 3 2700-4500 24-37 48-832828A45 Black Max Sport Series
115 STD Pro XS FourStroke ‑ Bass
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1800-2300 43-55 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 2000-2700 38-49 48-8M0055550 SpitFire X7 Elite Series
13 17 4 2300-3300 31-44 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2700-4300 25-37 48-8M0055548 SpitFire X7 Elite Series
12.8 19 4 2000-2700 38-49 48-8M8026600 SpitFire Elite Series
12.8 17 4 2300-3300 31-44 48-8M8026590 SpitFire Elite Series
12.8 15 4 2700-4300 25-37 48-8M8026580 SpitFire Elite Series
12.5 23 3 1600-2000 49-60 48- 77350A45 Black Max Sport Series
12.8 21 3 1800-2300 43-55 48- 77348A45 Black Max Sport Series
13 19 3 2000-2700 38-49 48- 77346A45 Black Max Sport Series
13.3 17 3 2300-3300 31-44 48- 77344A45 Black Max Sport Series
13.3 16 3 2400-3800 28-41 48-854360A45 Black Max Sport Series
