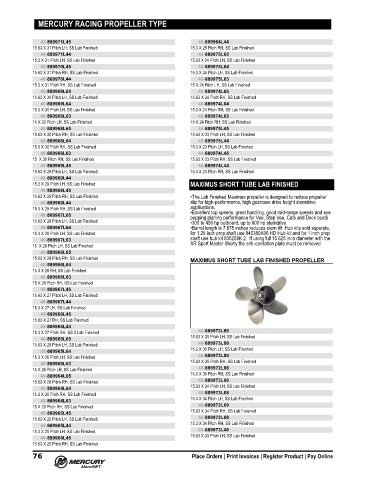

Page 83 - Mercury Propeller Guide (2021) - 8M0174460

MERCURY RACING PROPELLER TYPE

48-889971L45 48-889964L44
15.63 X 31 Pitch LH, SS Lab Finished 15.3 X 25 Pitch RH, SS Lab Finished
48-889971L44 48-889975L65
15.3 X 31 Pitch LH, SS Lab Finished 15.63 X 24 Pitch LH, SS Lab Finished
48-889970L45 48-889975L64
15.63 X 31 Pitch RH, SS Lab Finished 15.3 X 24 Pitch LH, SS Lab Finished
48-889970L44 48-889975L63
15.3 X 31 Pitch RH, SS Lab Finished 15 X 24 Pitch LH, SS Lab Finished
48-889969L65 48-889974L65
15.63 X 30 Pitch LH, SS Lab Finished 15.63 X 24 Pitch RH, SS Lab Finished
48-889969L64 48-889974L64
15.3 X 30 Pitch LH, SS Lab Finished 15.3 X 24 Pitch RH, SS Lab Finished
48-889969L63 48-889974L63
15 X 30 Pitch LH, SS Lab Finished 15 X 24 Pitch RH, SS Lab Finished
48-889968L65 48-889975L45
15.63 X 30 Pitch RH, SS Lab Finished 15.63 X 23 Pitch LH, SS Lab Finished
48-889968L64 48-889975L44
15.3 X 30 Pitch RH, SS Lab Finished 15.3 X 23 Pitch LH, SS Lab Finished
48-889968L63 48-889974L45
15 X 30 Pitch RH, SS Lab Finished 15.63 X 23 Pitch RH, SS Lab Finished
48-889969L45 48-889974L44
15.63 X 29 Pitch LH, SS Lab Finished 15.3 X 23 Pitch RH, SS Lab Finished
48-889969L44
15.3 X 29 Pitch LH, SS Lab Finished MAXIMUS SHORT TUBE LAB FINISHED
48-889968L45
15.63 X 29 Pitch RH, SS Lab Finished •The Lab Finished Maximus propeller is designed to reduce propeller
48-889968L44 slip for high‑performance, high gearcase drive height sterndrive
15.3 X 29 Pitch RH, SS Lab Finished applications.
•Excellent top speeds, great handling, good mid‑range speeds and eye
48-889967L65 popping planing performance for Vee, Step Vee, Cats and Deck boats
15.63 X 28 Pitch LH, SS Lab Finished •300 to 450 hp outboard, up to 600 hp sterndrive
48-889967L64 •Barrel length is 7.875 inches reduces stern lift. Hub kits sold seperate,
15.3 X 28 Pitch LH, SS Lab Finished for 1.25 inch prop shaft use 840389K06 HD Hub kit and for 1 inch prop
48-889967L63 shaft use hub kit 835258K 2. If using full 15.625 inch diameter with the
15 X 28 Pitch LH, SS Lab Finished XR Sport Master Shorty the anti‑cavitation plate must be removed
48-889966L65
15.63 X 28 Pitch RH, SS Lab Finished MAXIMUS SHORT TUBE LAB FINISHED PROPELLER
48-889966L64
15.3 X 28 RH, SS Lab Finished
48-889966L63
15 X 28 Pitch RH, SS Lab Finished
48-889967L45
15.63 X 27 Pitch LH, SS Lab Finished
48-889967L44
15.3 X 27 LH, SS Lab Finished
48-889966L45
15.63 X 27 RH, SS Lab Finished
48-889966L44
15.3 X 27 Pitch RH, SS 5 Lab Finished 48-889973L89
48-889965L65 15.63 X 35 Pitch LH, SS Lab Finished
15.63 X 26 Pitch LH, SS Lab Finished 48-889973L88
48-889965L64 15.3 X 35 Pitch LH, SS Lab Finished
15.3 X 26 Pitch LH, SS Lab Finished 48-889972L89
48-889965L63 15.63 X 35 Pitch RH, SS Lab Finished
15 X 26 Pitch LH, SS Lab Finished 48-889972L88
48-889964L65 15.3 X 35 Pitch RH, SS Lab Finished
15.63 X 26 Pitch RH, SS Lab Finished 48-889973L69
48-889964L64 15.63 X 34 Pitch LH, SS Lab Finished
15.3 X 26 Pitch RH, SS Lab Finished 48-889973L68
48-889964L63 15.3 X 34 Pitch LH, SS Lab Finished
15 X 26 Pitch RH, SS Lab Finished 48-889972L69
48-889965L45 15.63 X 34 Pitch RH, SS Lab Finished
15.63 X 25 Pitch LH, SS Lab Finished 48-889972L68
48-889965L44 15.3 X 34 Pitch RH, SS Lab Finished
15.3 X 25 Pitch LH, SS Lab Finished 48-889973L49
48-889964L45 15.63 X 33 Pitch LH, SS Lab Finished
15.63 X 25 Pitch RH, SS Lab Finished
