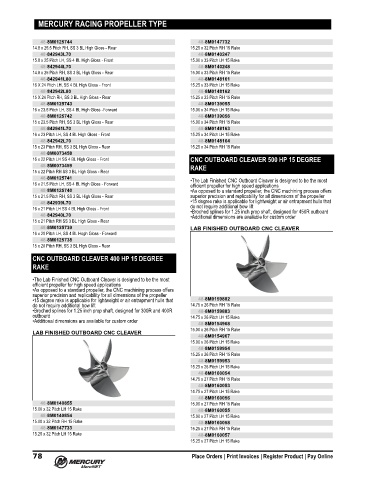

Page 85 - Mercury Propeller Guide (2021) - 8M0174460
P. 85
MERCURY RACING PROPELLER TYPE
48-8M0125744 48-8M0147732
14.8 x 25.5 Pitch RH, SS 3 BL High Gloss ‑ Rear 15.25 x 32 Pitch RH 15 Rake
48-842943L70 48-8M0140247
15.8 x 25 Pitch LH, SS 4 BL High Gloss ‑ Front 15.00 x 33 Pitch LH 15 Rake
48-842944L70 48-8M0140248
14.8 x 25 Pitch RH, SS 3 BL High Gloss ‑ Rear 15.00 x 33 Pitch RH 15 Rake
48-842941L80 48-8M0148161
16 X 24 Pitch LH, SS 4 BL High Gloss ‑ Front 15.25 x 33 Pitch LH 15 Rake
48-842942L80 48-8M0148162
15 X 24 Pitch RH, SS 3 BL High Gloss ‑ Rear 15.25 x 33 Pitch RH 15 Rake
48-8M0125743 48-8M0139055
16 x 23.5 Pitch LH, SS 4 BL High Gloss ‑Forward 15.00 x 34 Pitch LH 15 Rake
48-8M0125742 48-8M0139056
15 x 23.5 Pitch RH, SS 3 BL High Gloss ‑ Rear 15.00 x 34 Pitch RH 15 Rake
48-842941L70 48-8M0148163
16 x 23 Pitch LH, SS 4 BL High Gloss ‑ Front 15.25 x 34 Pitch LH 15 Rake
48-842942L70 48-8M0148164
15 x 23 Pitch RH, SS 3 BL High Gloss ‑ Rear 15.25 x 34 Pitch RH 15 Rake
48-8M0073458
16 x 22 Pitch LH SS 4 BL High Gloss ‑ Front CNC OUTBOARD CLEAVER 500 HP 15 DEGREE
48-8M0073459 RAKE
15 x 22 Pitch RH SS 3 BL High Gloss ‑ Rear
48-8M0125741 •The Lab Finished CNC Outboard Cleaver is designed to be the most
16 x 21.5 Pitch LH, SS 4 BL High Gloss ‑ Forward efficient propeller for high speed applications
48-8M0125740 •As opposed to a standard propeller, the CNC machining process offers
15 x 21.5 Pitch RH, SS 3 BL High Gloss ‑ Rear superior precision and replicability for all dimensions of the propeller
48-842939L70 •15 degree rake is applicable for lightweight or air entrapment hulls that
16 x 21 Pitch LH SS 4 BL High Gloss ‑ Front do not require additional bow lift
•Broched splines for 1.25 inch prop shaft, designed for 450R outboard
48-842940L70 •Additional dimensions are available for custom order
15 x 21 Pitch RH SS 3 BL High Gloss ‑ Rear
48-8M0125739 LAB FINISHED OUTBOARD CNC CLEAVER
16 x 20 Pitch LH, SS 4 BL Hogh Gloss ‑ Forward
48-8M0125738
15 x 20 Pitch RH, SS 3 BL High Gloss ‑ Rear
CNC OUTBOARD CLEAVER 400 HP 15 DEGREE
RAKE
•The Lab Finished CNC Outboard Cleaver is designed to be the most
efficient propeller for high speed applications
•As opposed to a standard propeller, the CNC machining process offers
superior precision and replicability for all dimensions of the propeller
•15 degree rake is applicable for lightweight or air entrapment hulls that 48-8M0159882
do not require additional bow lift 14.75 x 26 Pitch RH 15 Rake
•Broched splines for 1.25 inch prop shaft, designed for 300R and 400R 48-8M0159883
outboard 14.75 x 26 Pitch LH 15 Rake
•Additional dimensions are available for custom order
48-8M0154968
15.00 x 26 Pitch RH 15 Rake
LAB FINISHED OUTBOARD CNC CLEAVER
48-8M0154967
15.00 x 26 Pitch LH 15 Rake
48-8M0159954
15.25 x 26 Pitch RH 15 Rake
48-8M0159953
15.25 x 26 Pitch LH 15 Rake
48-8M0160054
14.75 x 27 Pitch RH 15 Rake
48-8M0160053
14.75 x 27 Pitch LH 15 Rake
48-8M0160056
48-8M0140855 15.00 x 27 Pitch RH 15 Rake
15.00 x 32 Pitch LH 15 Rake 48-8M0160055
48-8M0140854 15.00 x 27 Pitch LH 15 Rake
15.00 x 32 Pitch RH 15 Rake 48-8M0160058
48-8M0147733 15.25 x 27 Pitch RH 15 Rake
15.25 x 32 Pitch LH 15 Rake 48-8M0160057
15.25 x 27 Pitch LH 15 Rake
